MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Müller Gefrees
  • Model:
  • Müller Gefrees PZK 50x550 S/HK
  • Condition:
  • Used
  • YOM:
  • 2002
  • Control:
  • Siemens S700-300 PLC
  • Price:
  • POA
  • Country:
  • Germany

DESCRIPTION

  • Press capacity: 50 ton
  • Ram stroke: 80 mm
  • Slide adjustment: 40 mm
  • Shut height (stroke down, adjustment up): 605 mm
  • Free frontal opening L-R: 560 mm T
  • able surface area : 500 x 650 mm
  • Slide area: 540 x 1.000 mm
  • Hole in table: 220 x 350 mm
  • Number of strokes: 80 - 160 s.p.m.
  • Required power: 4 kW
  • Height over floor approx.: 3.400 mm
  • Width: 1.600 mm
  • Table surface area: 1.400 mm
  • Weight of machine approx.: 7.5 ton
  • Roll feeder sheet width: 300 mm
  • Max. stainless steel: 6 mm
  • Max. steel: 1.200 sq mm
  • Roll feeder: 0,1 - 6.000 mm
  • Feeding rolls diameter: +/- 0,05 mm
  • Feeding length per stroke max.: 90 m / min
  • Electrics: 96 mm
  • Bandeinlaufhöhe: 235 - 335 mm
  • Leveller / Straightener sheet width: 10 - 300 mm
  • Max. stainless steel: 7
  • Max. steel: 1.290 mm
  • Levelling speed: 30 m / min
  • Retraction force: 80 mm

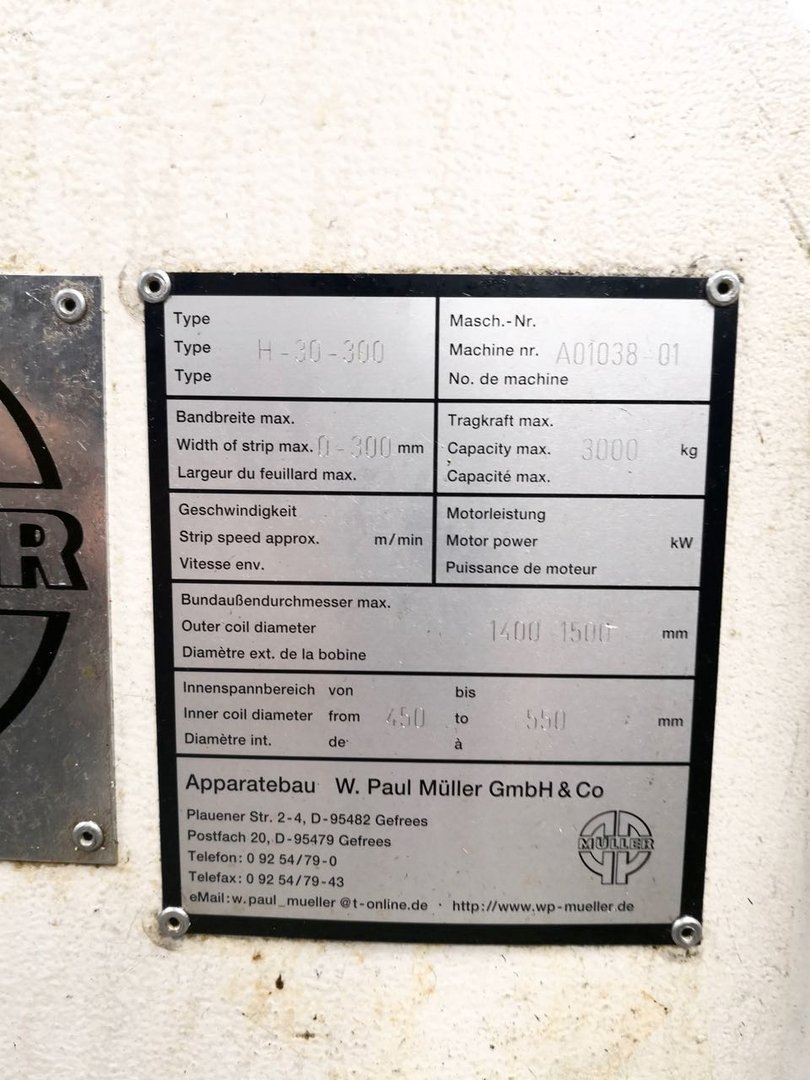

  • Decoiler Coil weight: 3.0 ton
  • Material width: 0 - 300 mm
  • Coil exterior diameter: 1.400 - 1.500 mm
  • Coil interior diameter: 450 - 550 mm
  •  Incl. Noise Reduction Cabine
  • CAD-Connection with extra Station (Computer)
  • Motol Die System

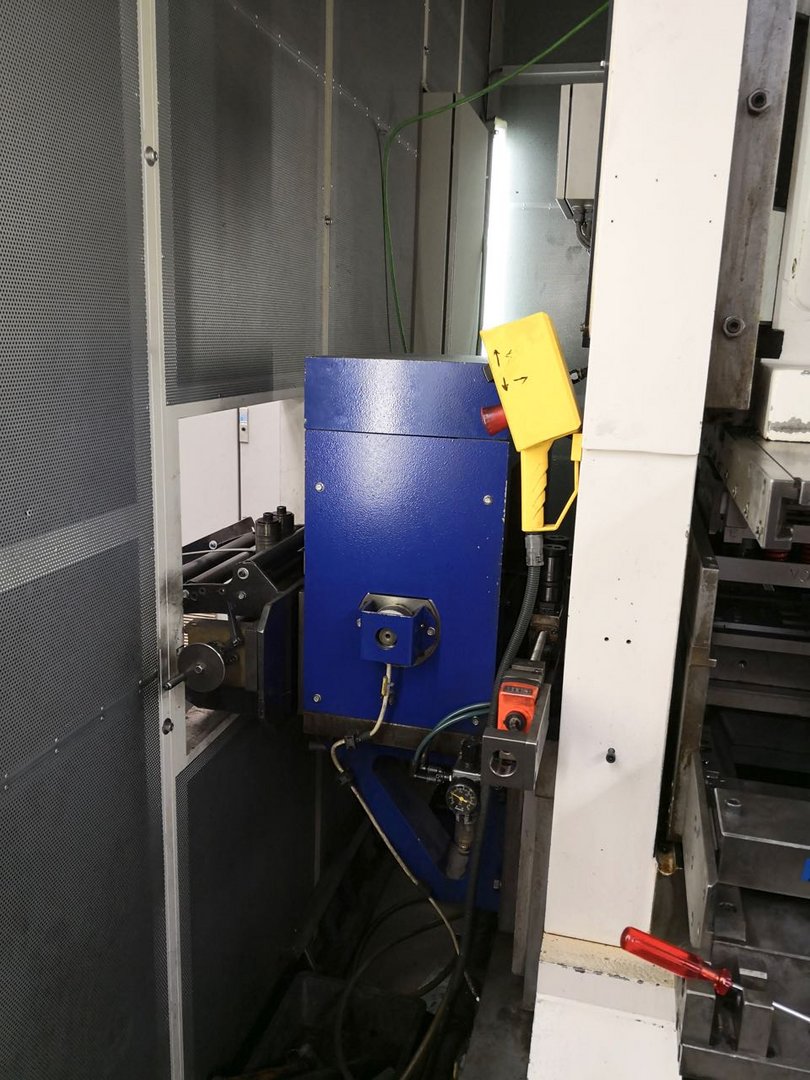

  • Rollfeeder
  • Sheet width 300 mm max.
  • sheet thickness 6 mm
  • Cross section 1.200 mm2
  • Feeding length 0,1 - 6.000 mm
  • Feeding accuracy +/- 0,05 mm
  • Feeding speed max. 90 m/min.
  • Motor Power 6 KW
  • Belt income heig 235 - 335 mm
  • Leveller Sheet width 10 - 300 mm max.
  • sheet thickness 7 mm
  • Cross section 1.290 mm2
  • Belt speed 30 m/min.
  • Straightening roll diameter 80 mm
  • Decoiler max. Coilweight 3 t
  • Sheet width 0 - 300 mm
  • Coil outer diameter 1.400 - 1.500 mm
  • Coil inner diameter 450 - 550 mm
  • Description: Excellent condition, only 8.600 working hours and incl. spare parts Regularly maintenance



.
