MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • SCHAUBLIN
  • Model:
  • LEADSCREW LATHE SCHAUBLIN TYPE 135
  • Condition:
  • Used
  • YOM:
  • N/A
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • N/A

DESCRIPTION

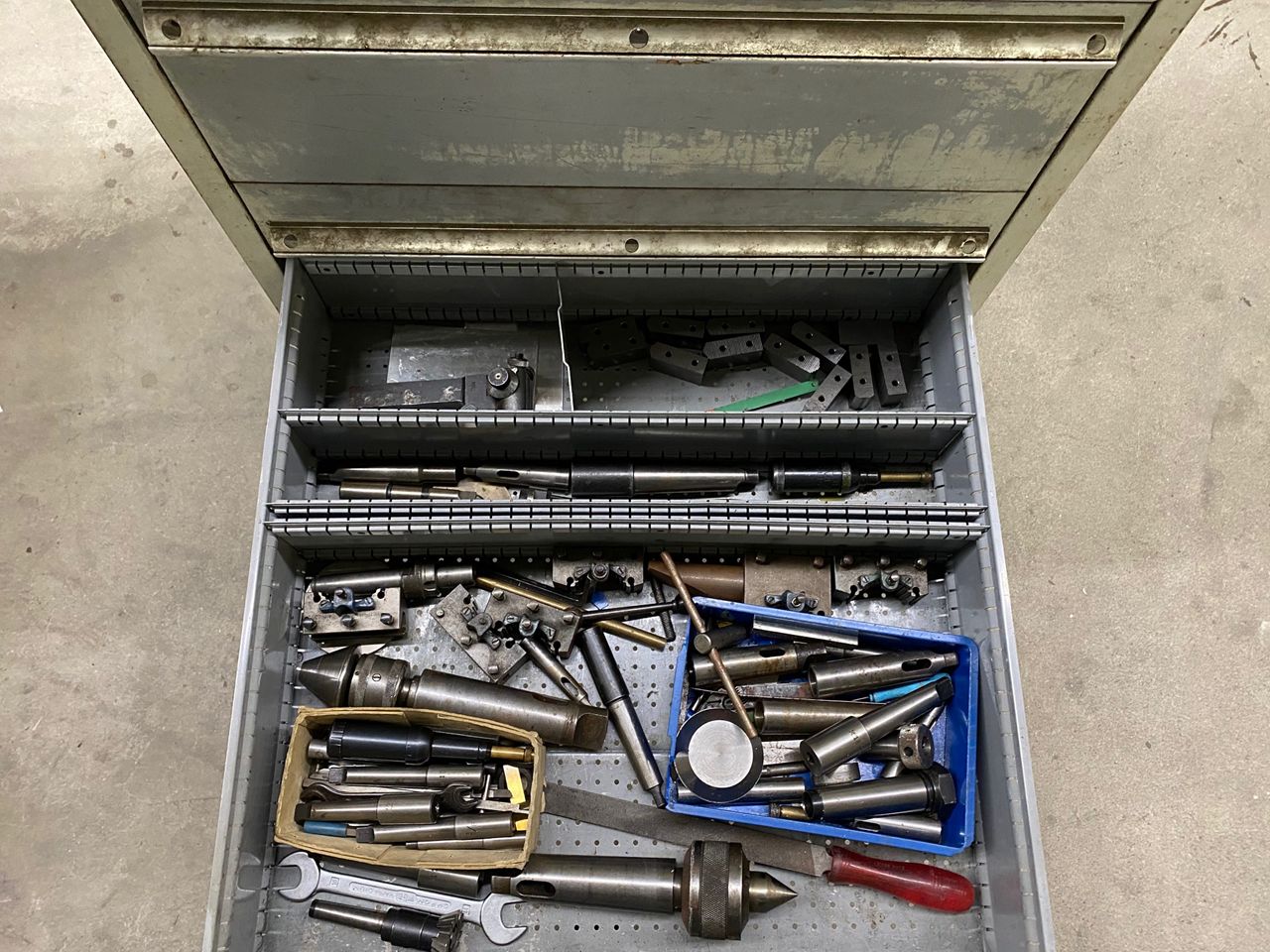

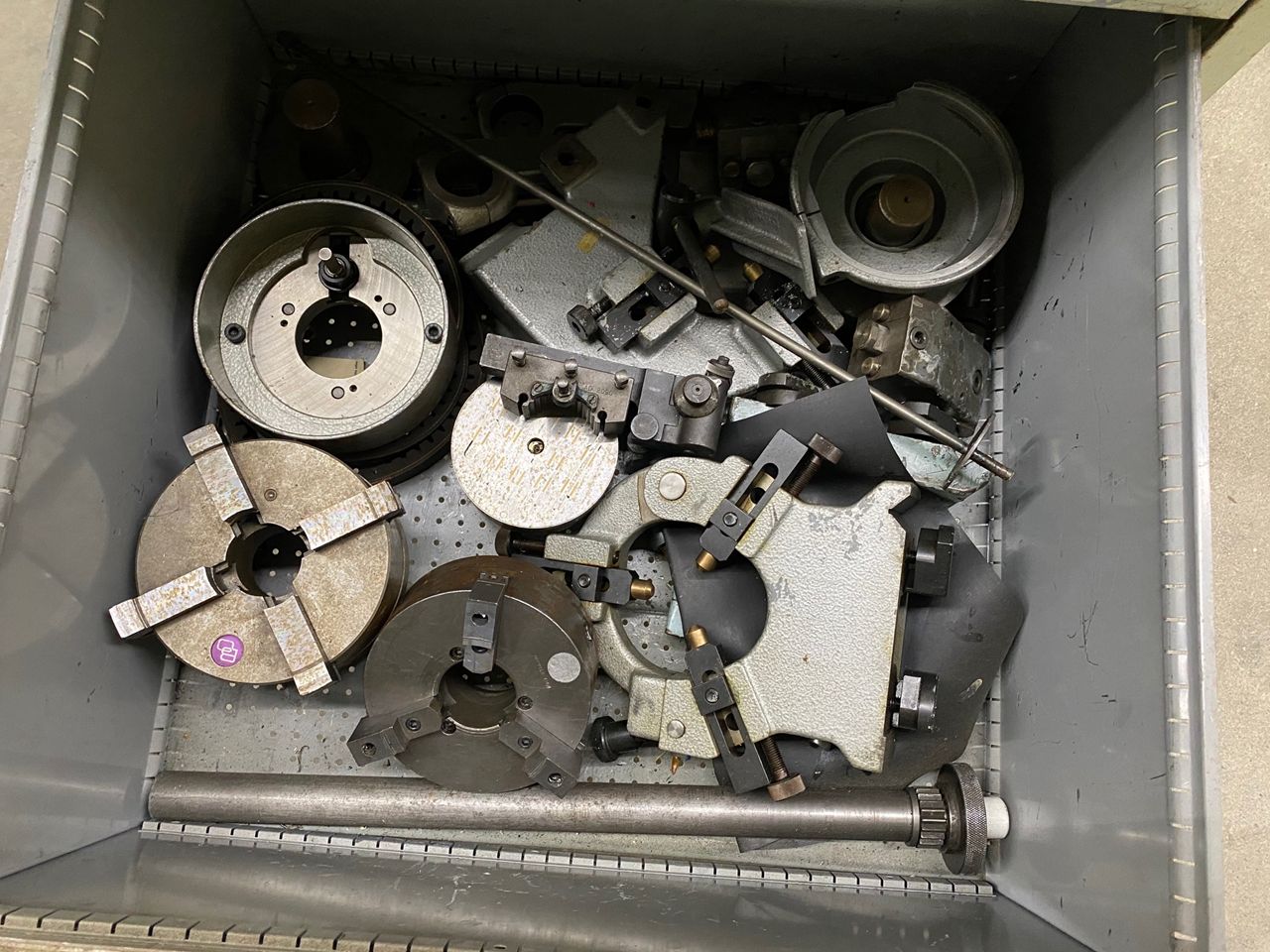

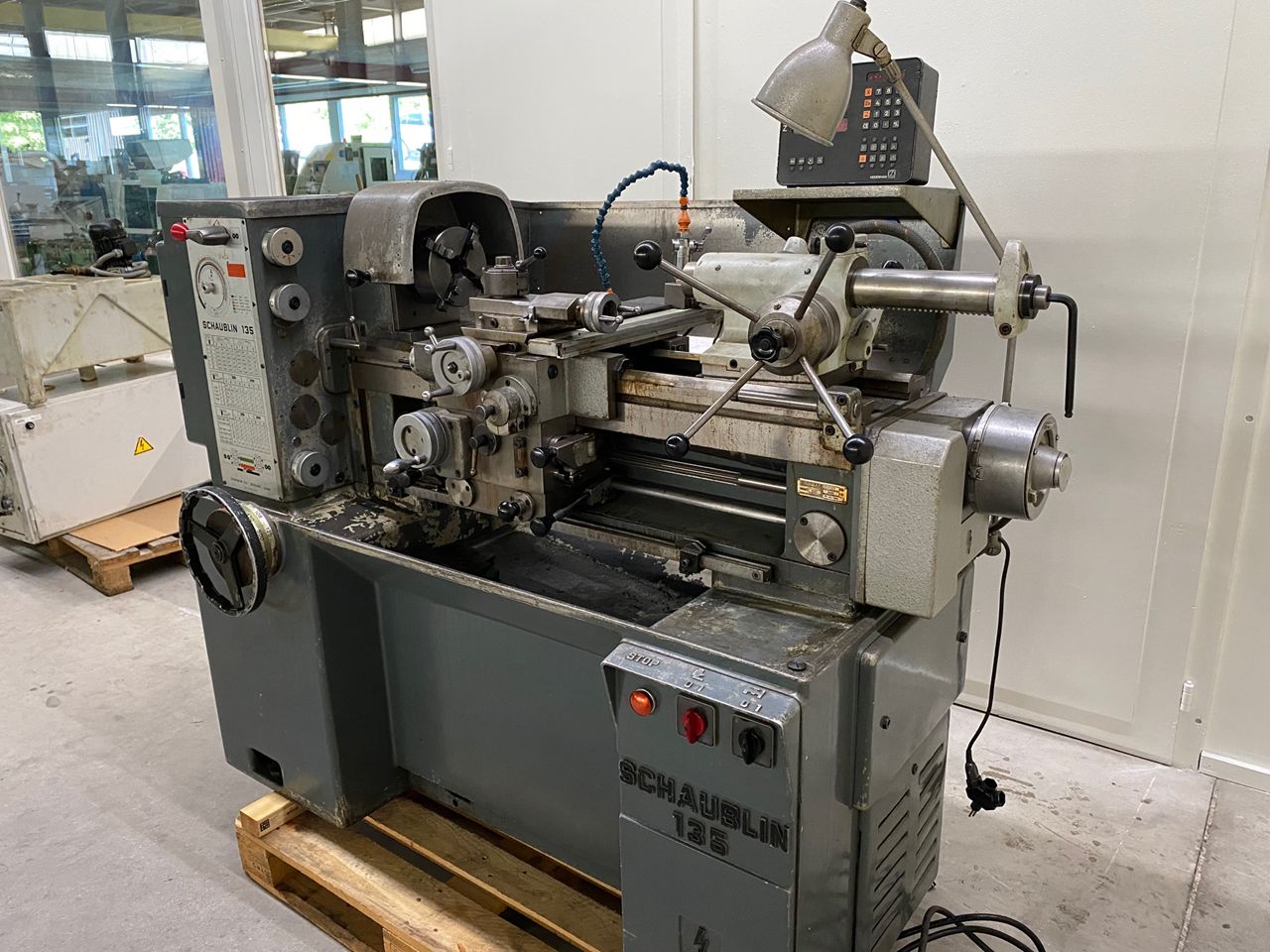

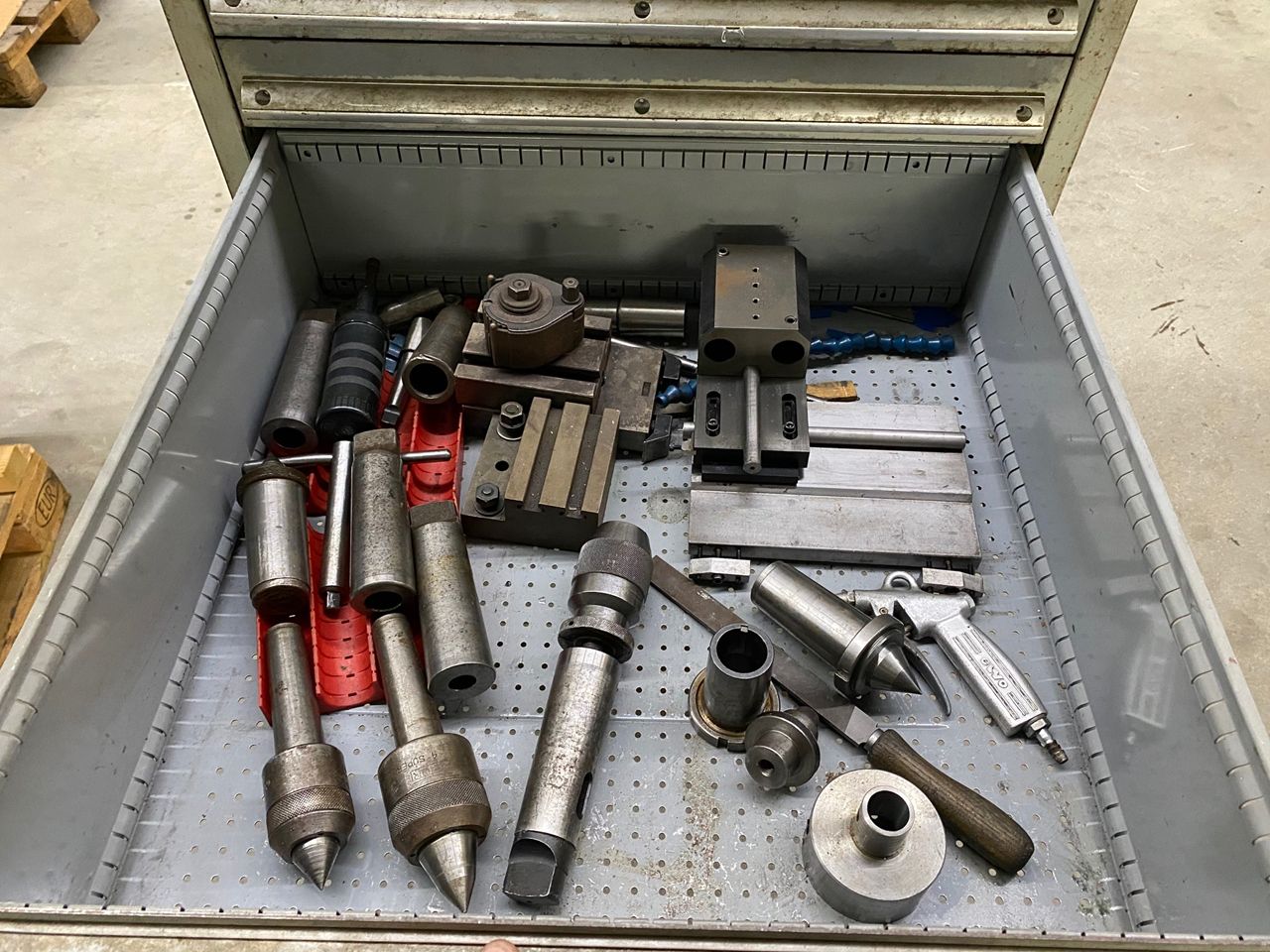

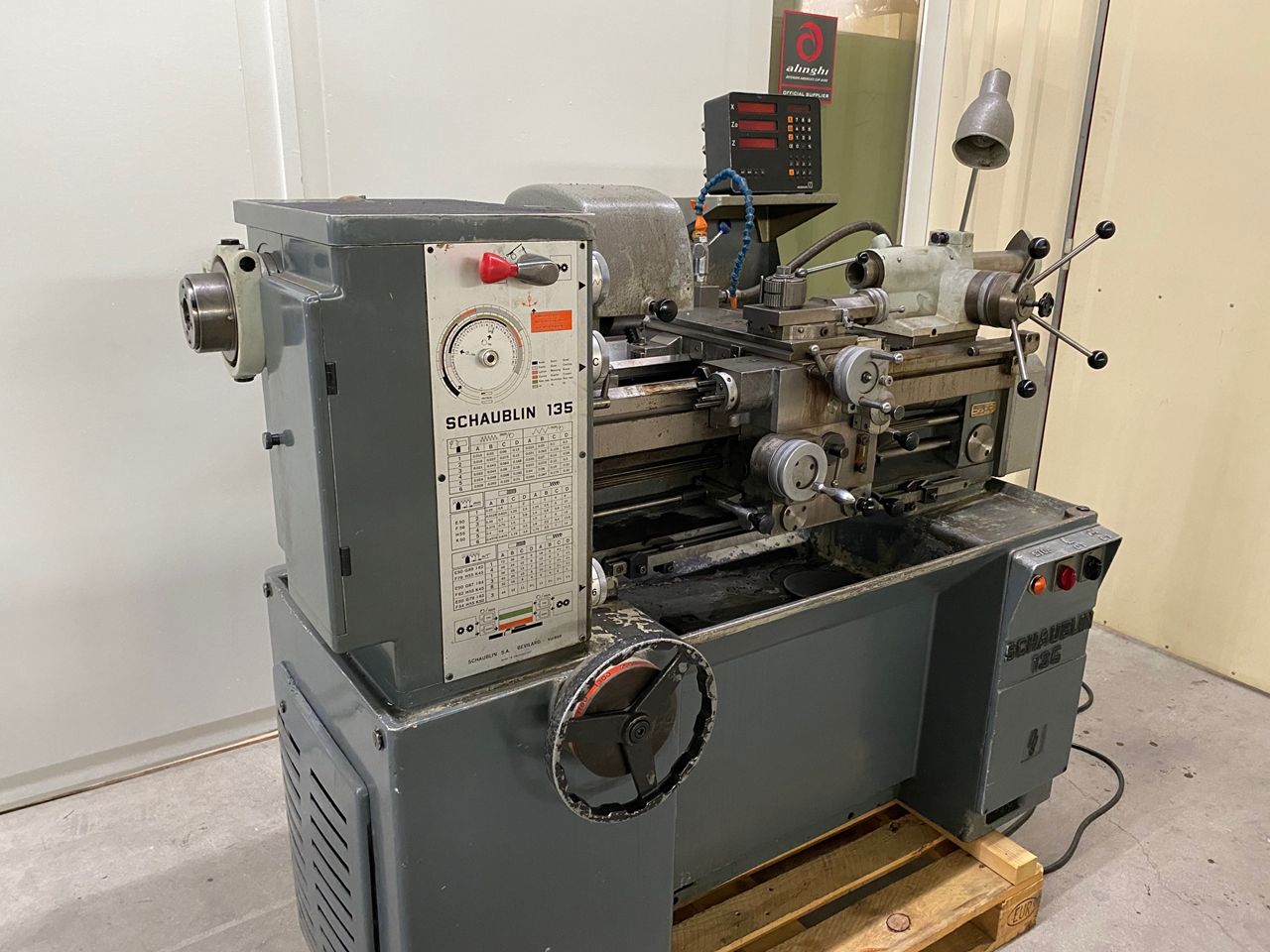

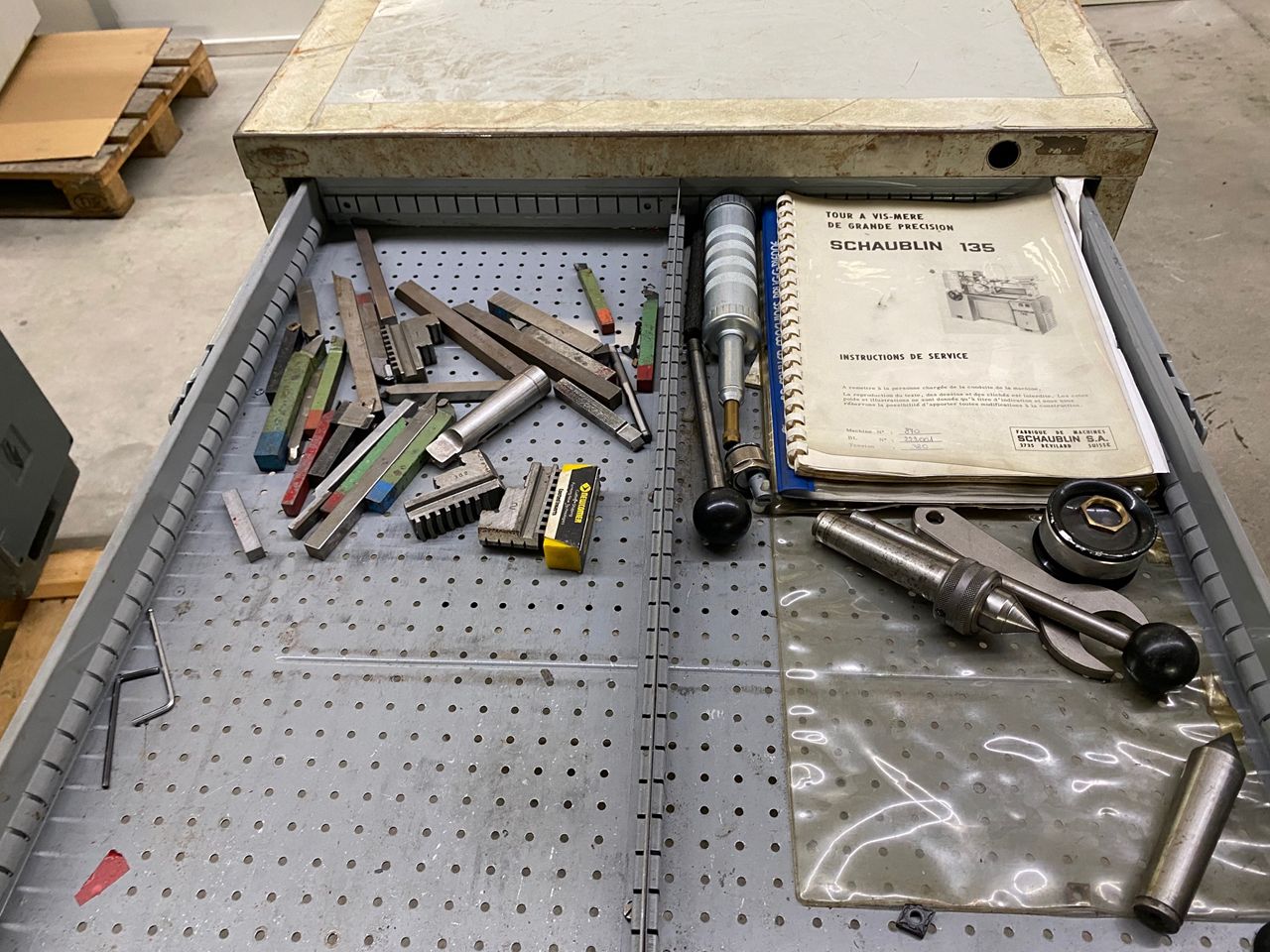

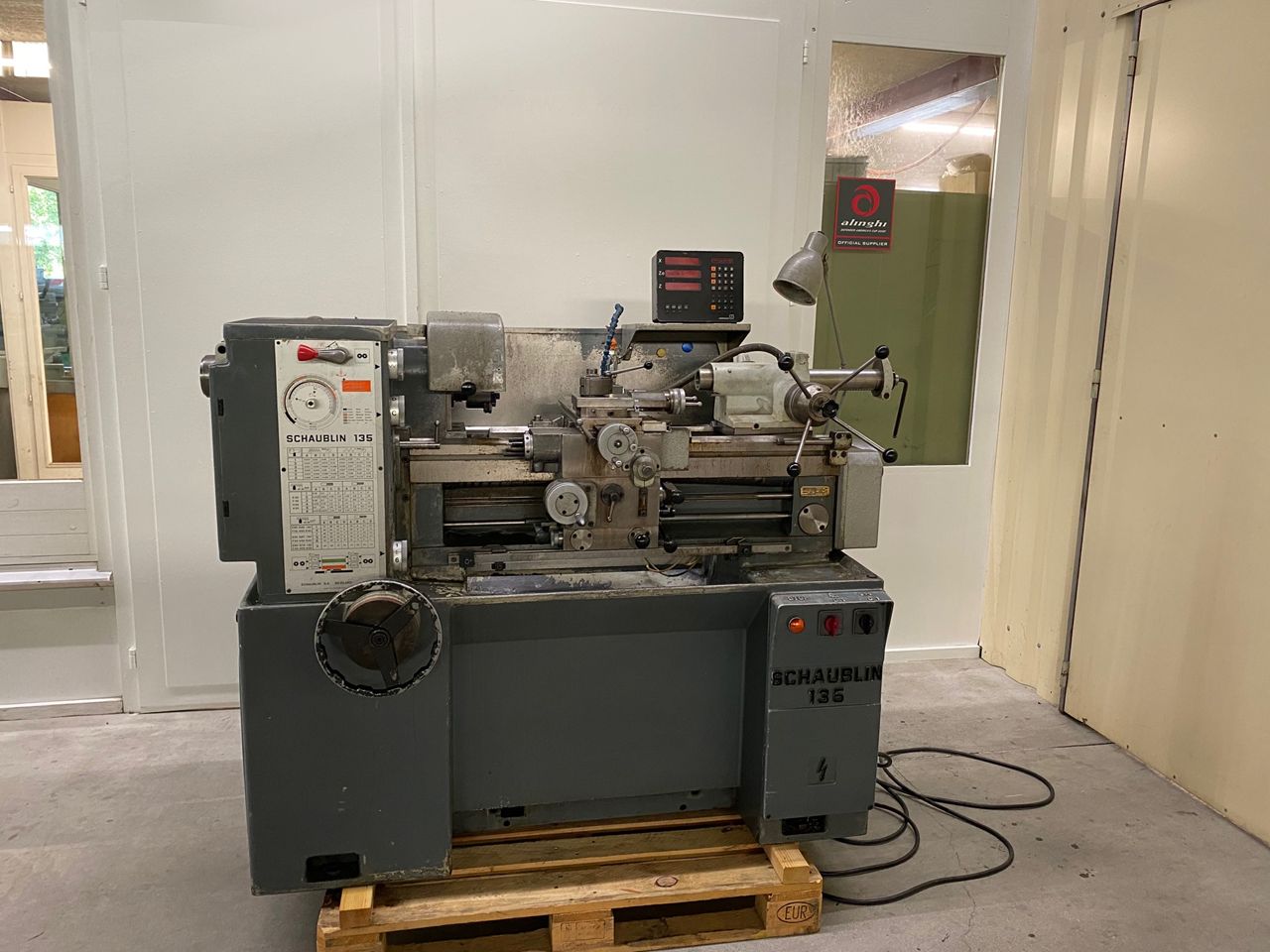

LEADSCREW LATHE SCHAUBLIN TYPE 135

Reference: 2320012



Information

Manufacturing origin Swiss
Netweight 1200 kg (gross 1350 kg)
Custom position 8458.1920

TECHNICAL DATA :

CAPACITY :

Height of centres 135 mm
Distance between centres 630 mm
Swing over bed 315 mm
Swing over carriage 150 mm

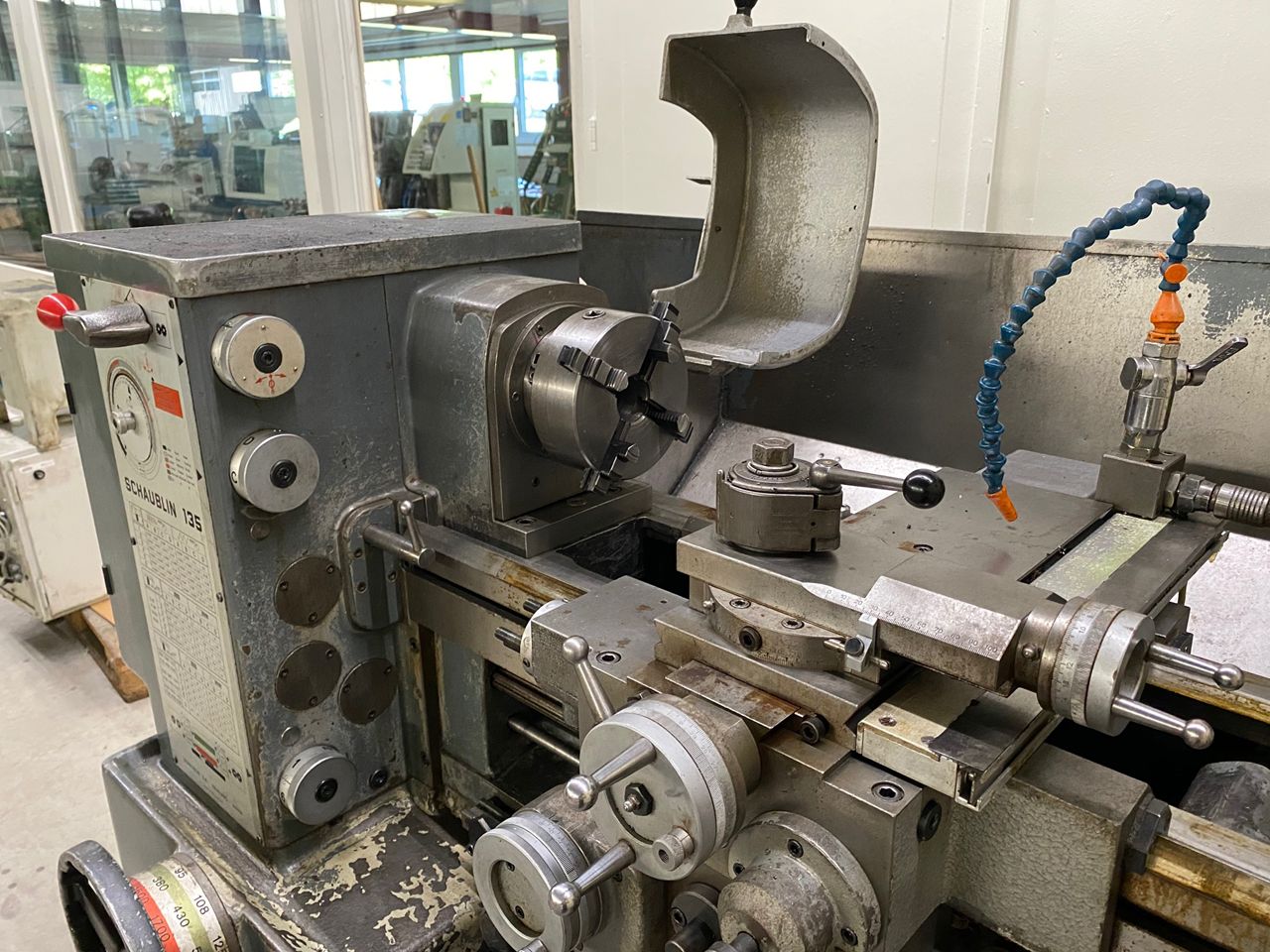

HEADSTOCK :

Spindle speeds, infinitely varaible 55-3000 rpm.
Spindle speeds, with open belt drive 220-3000 rpm.
Spindle speeds, with reduction gears 55-750 rpm.
Spindle nose Camlock D1-4"
Spindle bore dia. 40 mm
Spindle clamping taper Morse No. 5
Reduction bush for collet type B-32
Bar capacity of collet 24 mm

BED :

Height x width x length 320 x 270 x 1300 mm

TAILSTOCK :

Spindle dia. 50 mm
Internal spindle taper Morse No. 3
Spindle traverse 120 mm
Transversal adjustment = 10 mm

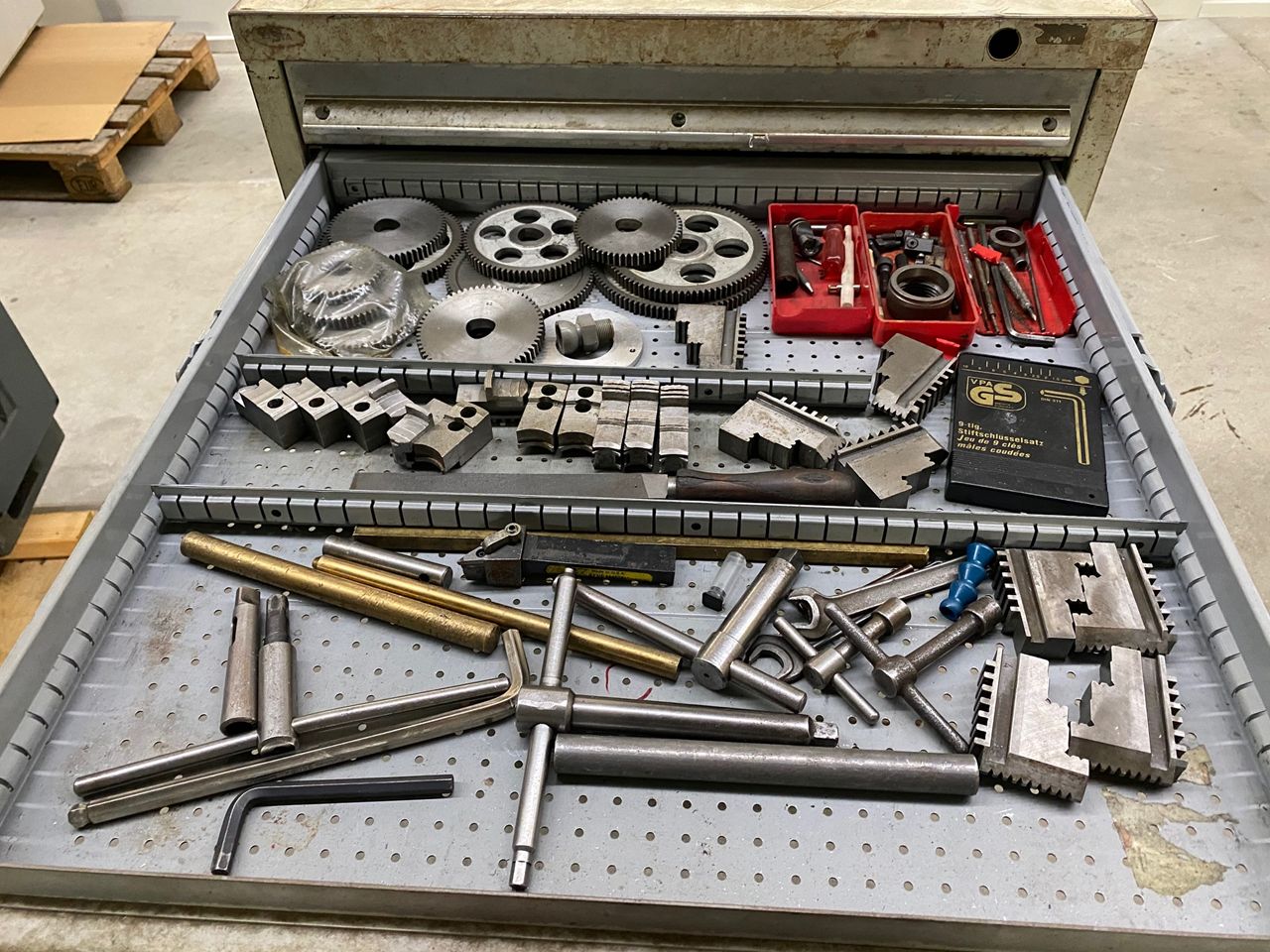

FEED AND SCREWCULTING GEAR BOX :

Number of metric pitches 48
Pitches 25 to 14 mm
Number of english pitches 48
Pitches 72 to 1 t.p.i.
Number of module pitches 48
Modules 125 to 7.5
Number of longitudinal and transversal feeds per revolution of spindle 96
24 fine feeds 015 to. 21 mm
24 feeds 025 to .35 mm
48 feeds by the use of screwcutting gears 25 to 14 mm

CARRIAGE :

Travel along bed 630 mm
Tool slide, width x length 95 x 225 mm
Traverse 100 mm
Height of centres above slide 26 mm
Dimensions of tools 16 x 16 mm
Cross slide, width x length 155 x 420 mm
Traverse 180 mm
Carriage body, guiding length on bed 400 mm

STEADIES :

Diameter of stock accommodated in both stationary
and travelling steadies 5 to 100 mm

COOLANT SYSTEM :

Tank capacity 27 litres

MOTOR :

Speeds 750 / 3000 rpm.
Power 2 / 4 HP
errors and omissions excepted data gived without obligation
