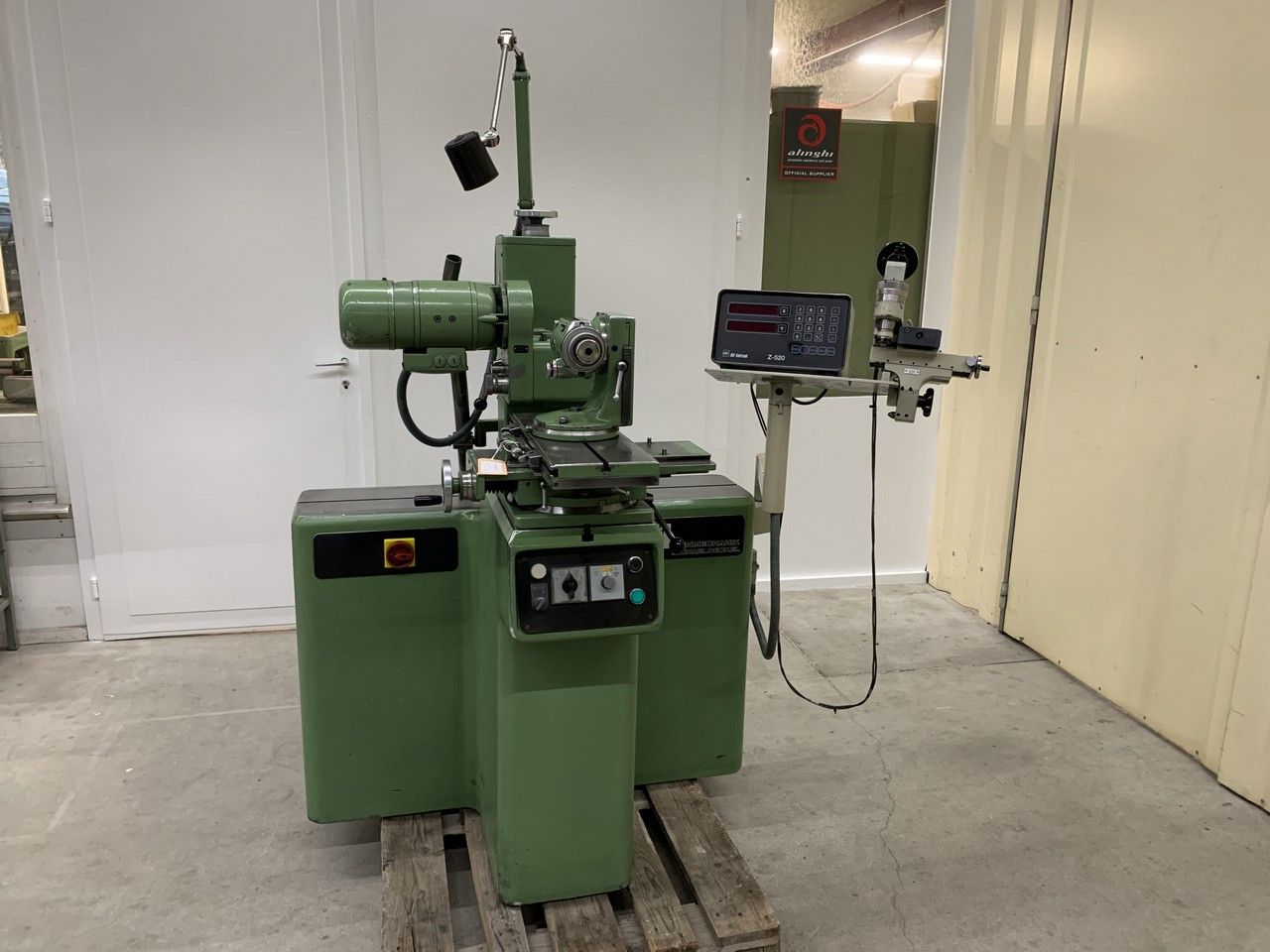

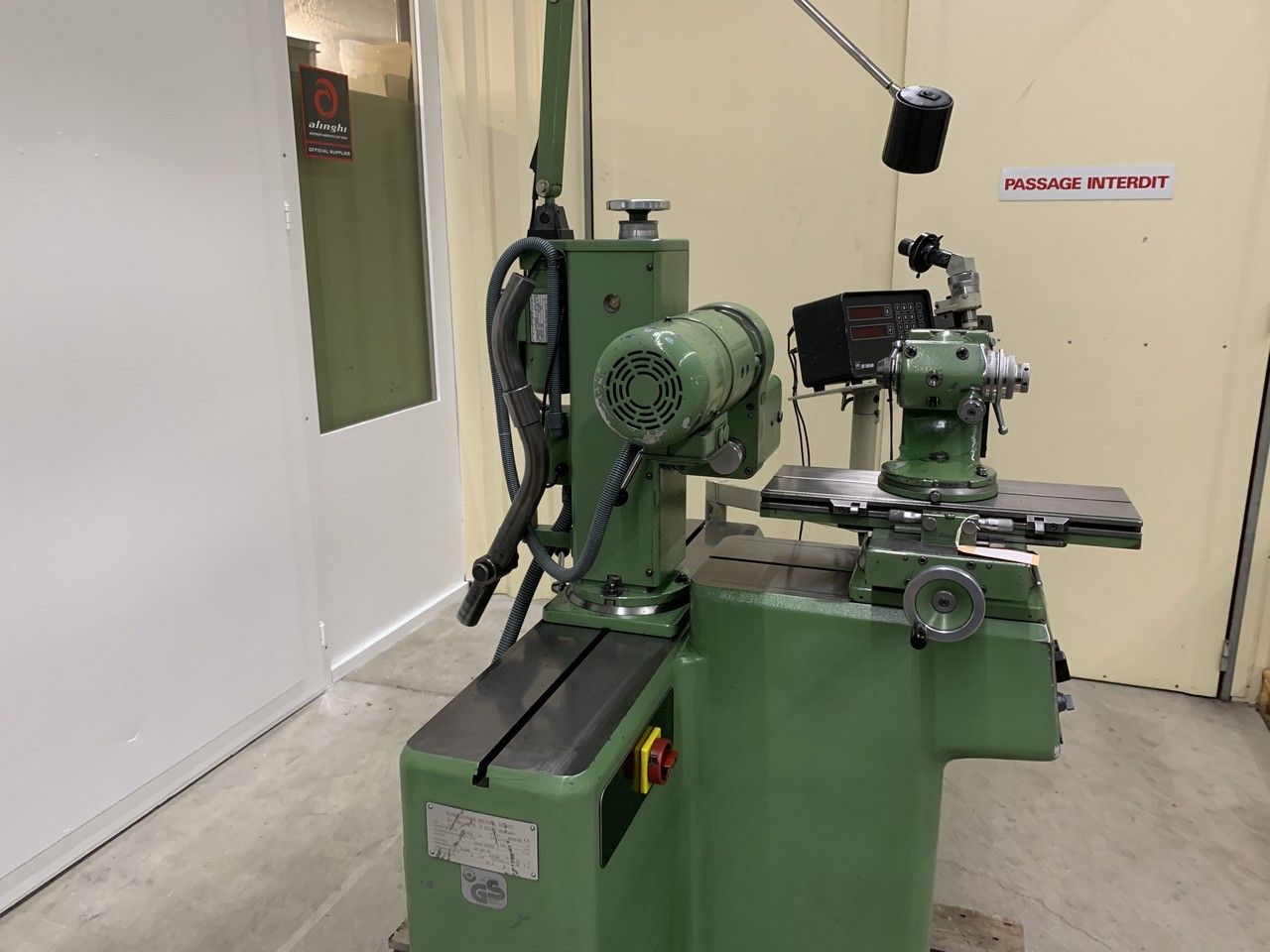

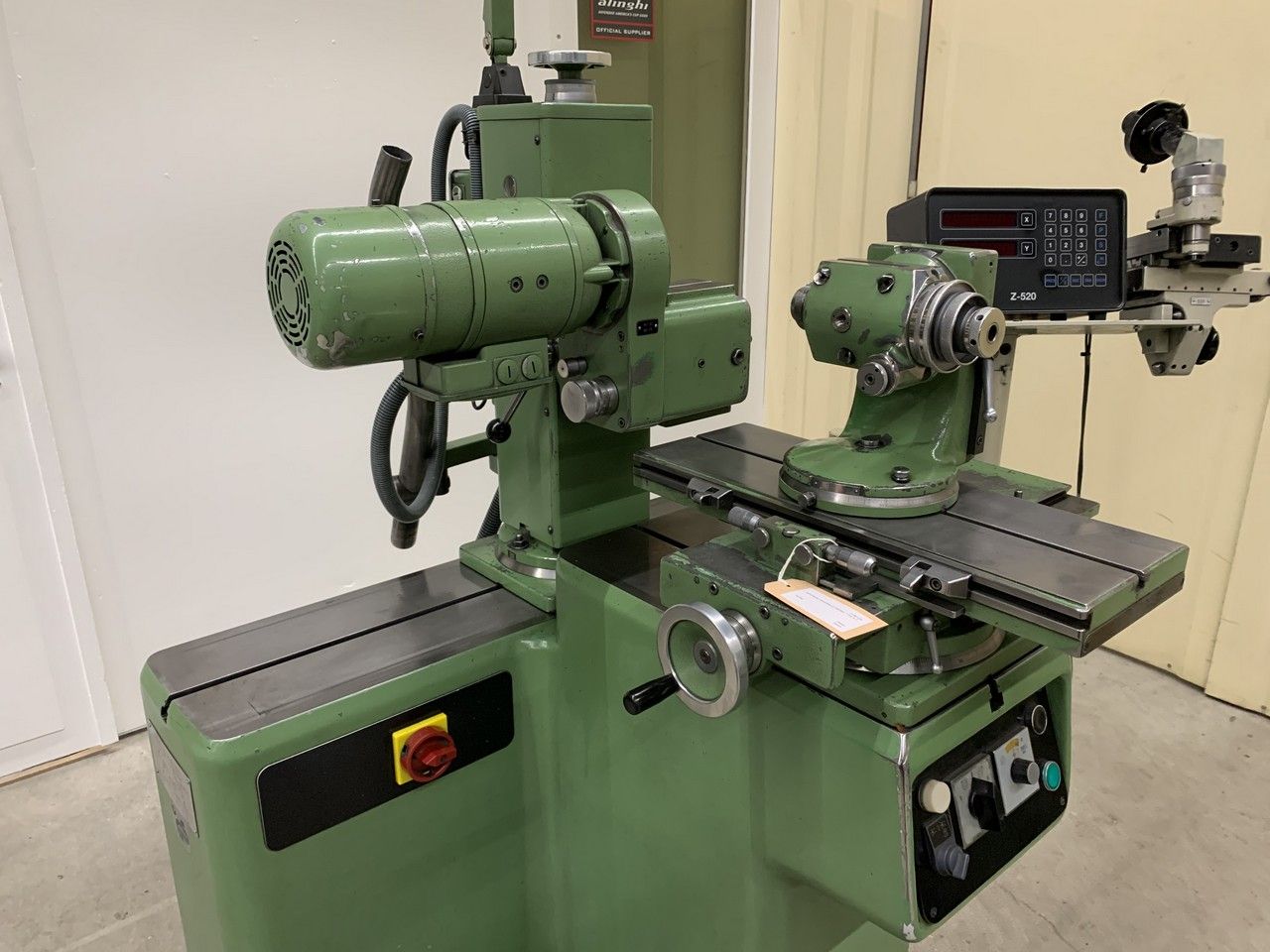

Grinding/DECKEL TYPE S-11 GRINDING MACHINE

REQUEST PRICE VIEW MAP

MACHINE INFORMATION AND SPECIFICATION

Category:
Metal Cutting

Subcategory:
Grinding

Manufacturer:
DECKEL

Model:
DECKEL TYPE S-11 GRINDING MACHINE

Condition:
Used

YOM:
N/A

Control:
NA

Price:
POA

Seller:
SCEMAMA SA

Country:
Switzerland

DESCRIPTION

INFORMATION

Manufacturing origin: DE
Netweight : 500 kg
Dimensions : 1100x800x1760 mm
Custom position : 8459.6930 :
TECHNICAL DATA
Dimensional capacities :
Flanging surface of tool-holder carriage : 500×180 mm
Max diameter between tools :
Tailstocks on tool-holder carriage : 238 mm
Tailstocks with arm-support on tool-holder carriage : 338 mm
Universal dividing attachment and tailstocks with
arm-upport on tool-holder carriage : 338 mm
Max diameter of tools in the air into the universal
dividing attachment : 620 mm
Max length of tools between centres :
Tailstocks on tool-holding carriage : 380 mm
Tailstocks with arm-support on tool-holding carriage : 940 mm
Universal dividing attachment and tailstock with arm-
support on tool-holding carriage : 530 mm
T-sluts of machine’s base : 12 mm
T-sluts of sharpening-head, tool-holding carriage
and complementary equipments : 8 mm
Operational capacities
Travels : tool-holding carriage : 190 mm
Tool-holding carriage in helicoidal sharpening : 190 mm
Transverse travel of tool-holding carriage : 100 mm
Vertical travel of sharpening-head : 325 mm
Axial travel of grinding-wheel holding carriage : 5 mm
Rough travels : whole tool-holder : 220 mm
Head-holding stand : 800 mm
Universal dividing attachment on tool-holder : 330 mm
Rotation ranges : head-holder stand : 360°
Sharpening head : 360°
Whole tool-holder : 360°
Grinding-wheel-holding spindle :
Motor c.t., commutable : 0,7 / 0,85 kW
Spindle-speeds : 4000 / 8000 rpm
Motor c.c., in continuous variation : 1,3 kW
Spindle-speed : 2000 up to 10000
Max dia. of grinding-wheels : 125 mm
Max dia. of hack-wheels : 200 mm
errors and omissions excepted-data given without obligation
Inventory Nr.2190130, machine equipped with :
– 1 universal dividing attachment CSA40 with drawbar S20x2 and disc with 4 ratchets ref 2555201
– 1 driving motor 100-1000 min-1 steplessly adjustable ref 2667000
– 1 reduction sleeve CSA40/L20
– 1 set of 23 collets L20 for dividers
– 1 set of 5 collets CSA 40
– 1 set of drawbar ref 256…
– 1 set of 11 dividing discs from 13 to 23 ratchets ref 2559302
– 1 opto-electronical measuring device with microscope ref 265012
– 1 relieving and helicoidal grinding device ref 258000
– 1 halogen lighting 12V 20W ref 26412000
– 1 set fo 28 wheel fittings
– 1 set of various wheels
– 1 wheel extracting key
– 1 cabinet with 5 drawers
– 1 aspiration unit CFM
