MACHINE INFORMATION AND SPECIFICATION

Category:
Lathes (CNC and Manual)

Subcategory:
Centre Lathes

Manufacturer:
Haas

Model:
Haas TL-2

Condition:
Used

YOM:
N/A

Control:
NA

Price:
POA

Seller:
Machine Tool Sales Online

Country:
United Kingdom

DESCRIPTION

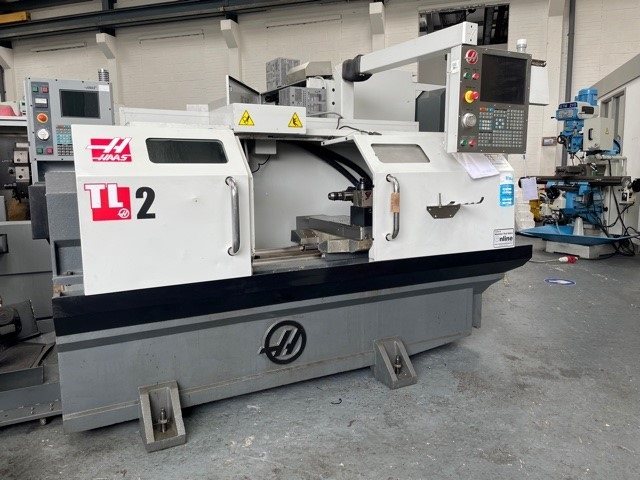

2015 built machine with latest ballscrew in the centre of bed design…Just arrived… Machine is immaculate…supplied with tool holders and 10” chuck. SWING DIAMETER Over Front Apron 508 mm Over Cross Slide 279 mm Chuck : 275mm (11”) Max Cutting Diameter 406 mm Max Cutting Length (without work holding) 1219 mm Between Centres 1219 mm X Axis 8 " 203 mm Z Axis 48 " 1219 mm Rapids on X 450 in/min 11.4 m/min Rapids on Z 450 in/min 11.4 m/min Max Thrust X 3894 lb 17 321 N Max Thrust Z 1947 lb 8661 N Max Rating 10 hp 7.5 kW Max Speed 1800 rpm 1800 rpm Max Torque 108 ft-lb @ 355 rpm 146 Nm @ 355 rpm Spindle Nose A2-6 A2-6 Spindle Bore ø 3.00 " 76.2 mm
