MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • BOEHRINGER
  • Model:

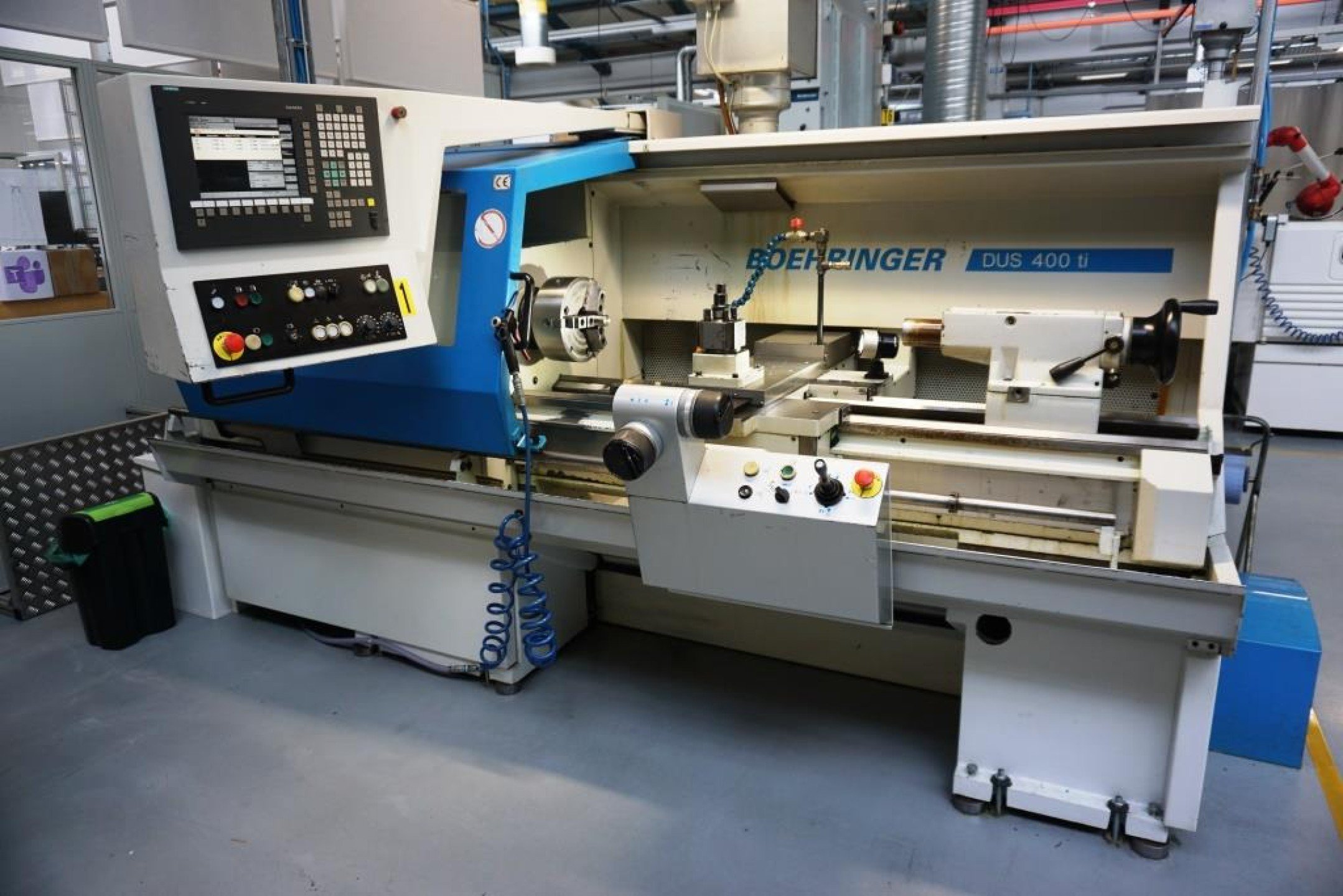

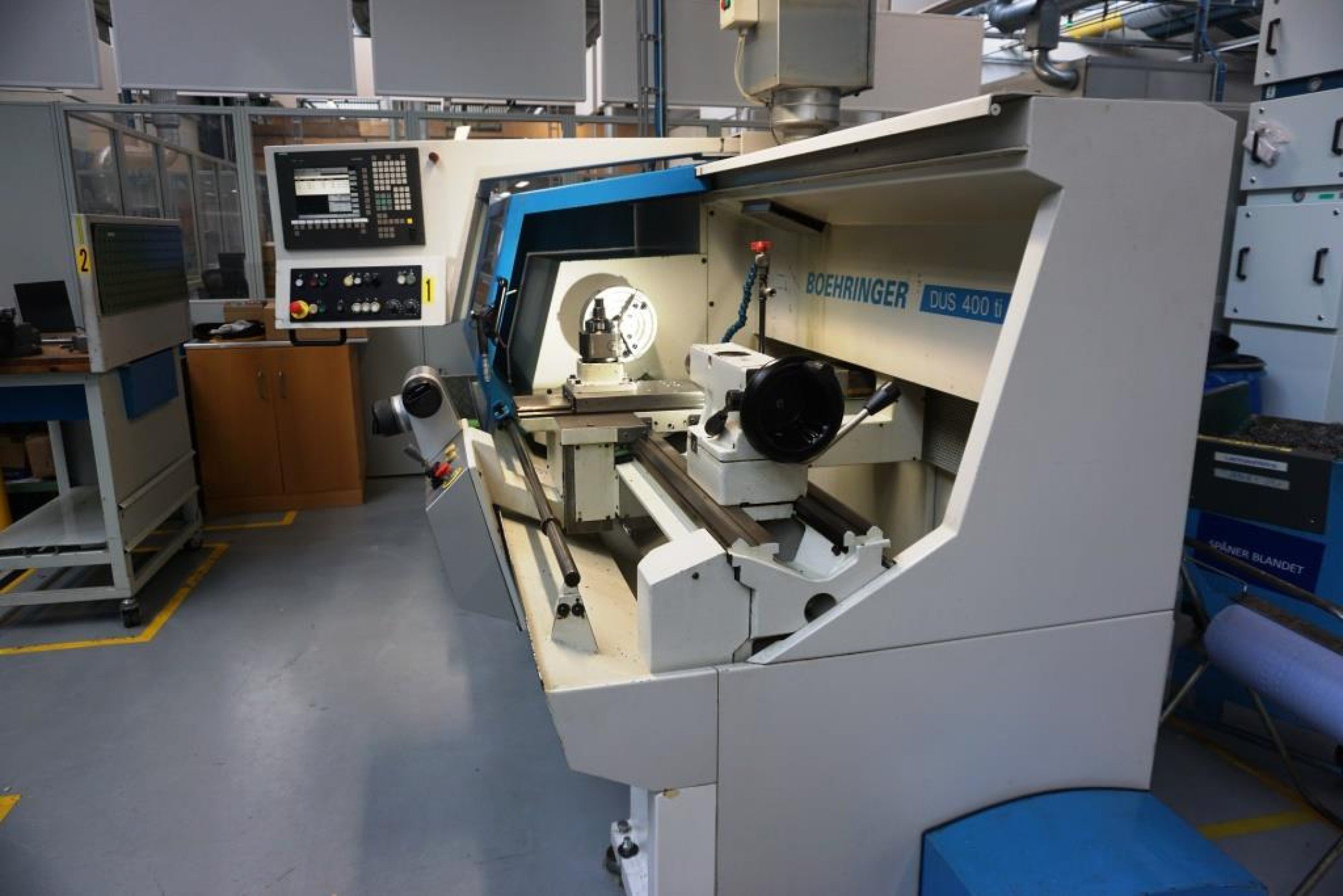

  • VDF BOEHRINGER - DUS 400 Ti
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • N/A

DESCRIPTION

Swing over bed Ø: 420mm | Swing over cross slide Ø: 235mm | DBC Turning Length: 1000mm | Spindle bore: 51mm | Spindle power: 11kW | Bed width: 300mm | Tailstock spindle Ø: 70Ø | Stroke pinole: 110mm | Spindle taper: 4Mk | Speeds / ranges: 10 - 3000Rpm | Feed rate X-Axis: 5000mm/min. | Feed rate Z-Axis: 10000mm/min. | Length: 3400mm | Width: 2000mm | Height: 2200mm | Weight: 3000kg
