MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • ASTRO
  • Model:

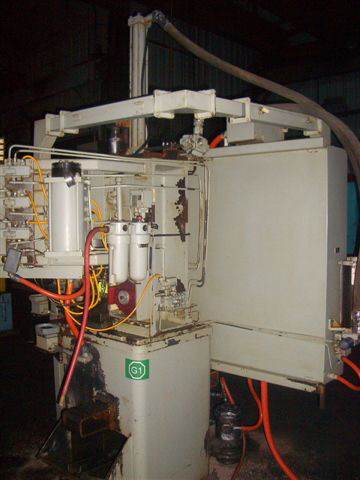

  • MODEL # AVB-24-2-70, ASTRO 2 TON VERTICAL HYDRAULIC BROACH
  • Condition:
  • NA
  • YOM:
  • N/A
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • United States of America United States of America

DESCRIPTION


EQUIPPED WITH:

Allen Bradley Mini PLC-2/02 Programmable Controller

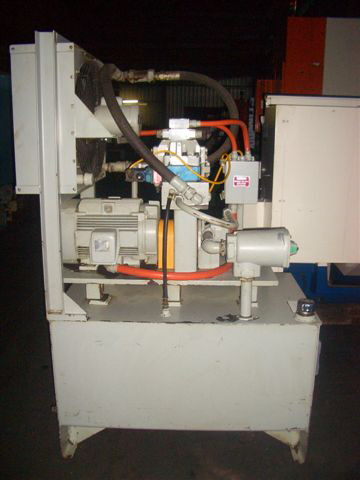

Hydraulic Unit
Vibratory Bowl Feeder
Floor Standing

Trabon Lubrication
Vickers Hydraulics
Heat Exchanger
Tooled For Last Job-7/16" Round 1" Long Steel Part

15 HP General Electric 220/440 Volt Motor
Two .001 Dial Indicators on Tooling Set

SPECIFICATIONS:

Ton: 2
Stroke: 24"
Ram Travel: 2"-26"
Cutting Speed: 0-70 fpm
Return Speed: 140 fpm
Slide Width: 4"
Slide Length: 36"
Table R to L: 20" F to B 15"

Coolant Capacity: 20 Gallons
Oil Reservoir: 100 Gallons
Machine Dimensions:
Length: 82"
Width: 64"
Height: 115"
Net Weight (Approx.): 3,000 lbs
