- Man. Year 1985/2006

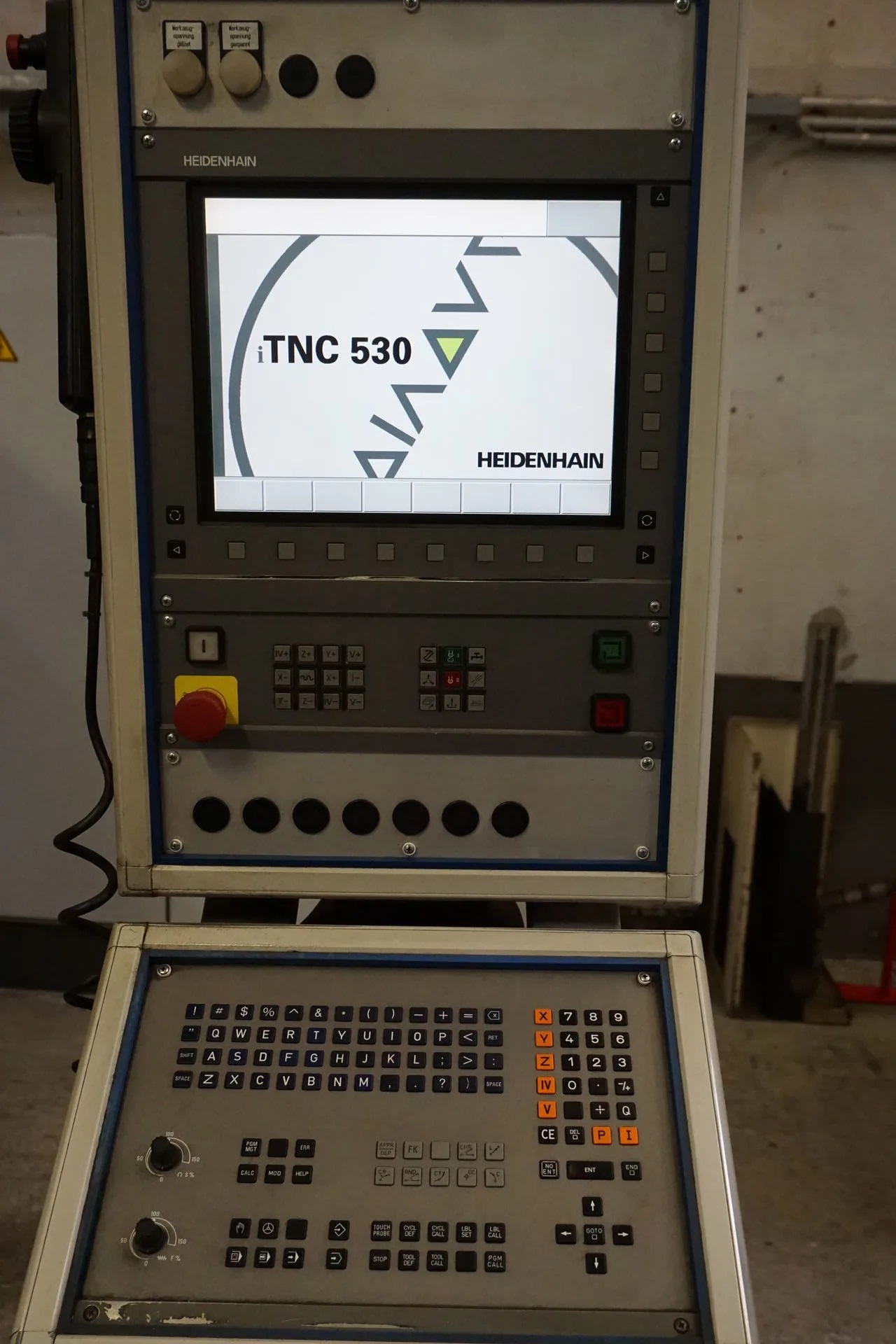

- Control Heidenhain iTNC 530
- Spindle diameter: 100 mm
- Travel X axis: 2000 mm
- Travel Y axis: 1500 mm
- Travel Z axis: 1000 mm
- Travel W axis: 500 mm

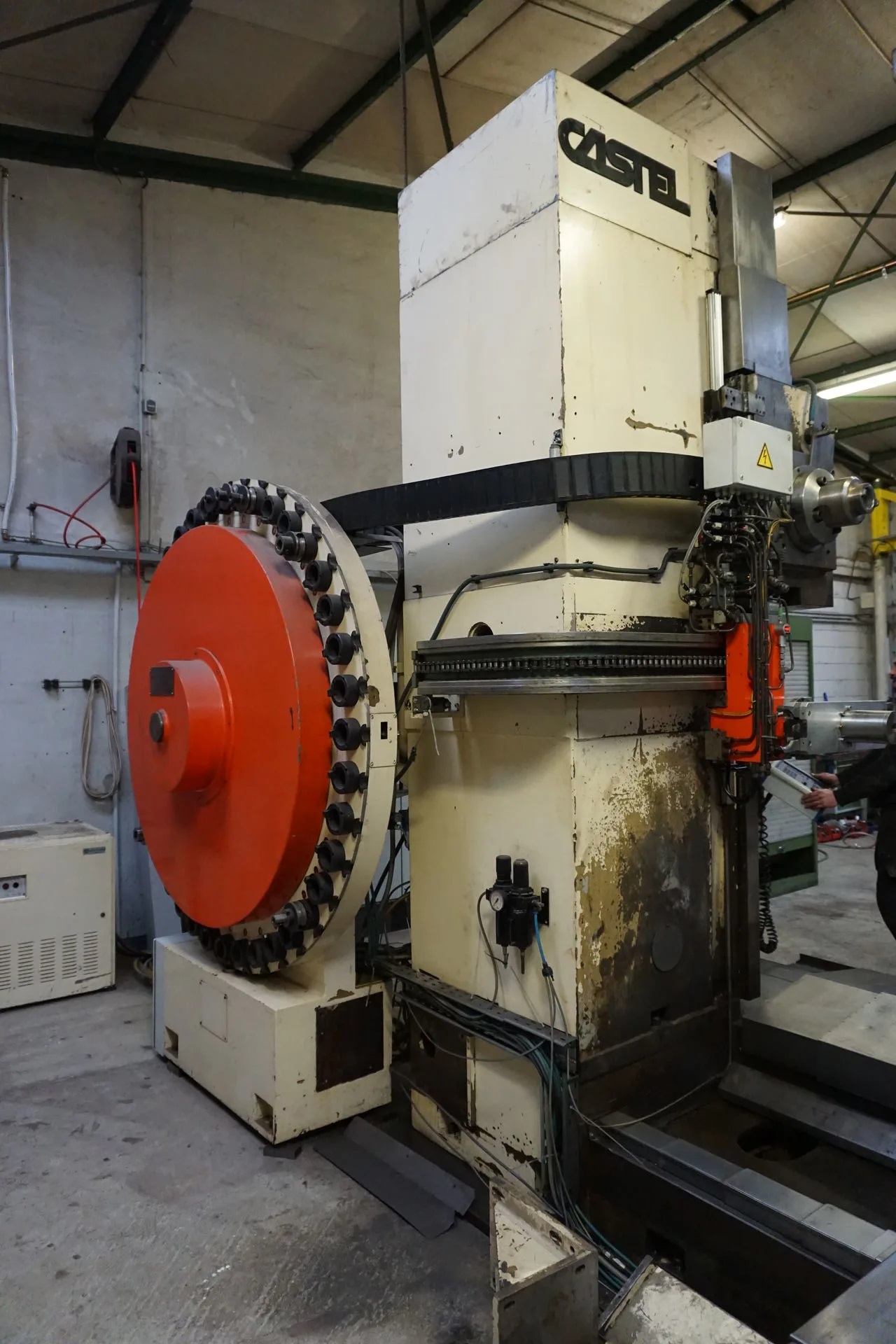

- Tool magazine: 40 pos.
- Table surface L x W: 1100 x 1300 mm
- Table rotation: 360 °
- Table load: 3000 kg
- Spindle speed: 1 - 2000 rpm
- Spindle taper: MAS BT 50
- Feed range: 1 - 5000 mm / min
- Rapid feed : 8,000 m / min
- Total power requirement: 22 kW
- Weight approx: 14,000 kg
- Dimensions (L x W x H) Approx.: 7200 x 6500 x 3400 mm
Rotary table dimensions:
mm 1100x1300 Longitudinal stroke mm 1200 Cross travel mm 2000 Vertical stroke mm 1500
Boring spindle diameter mm 100 Boring spindle stroke mm 700
