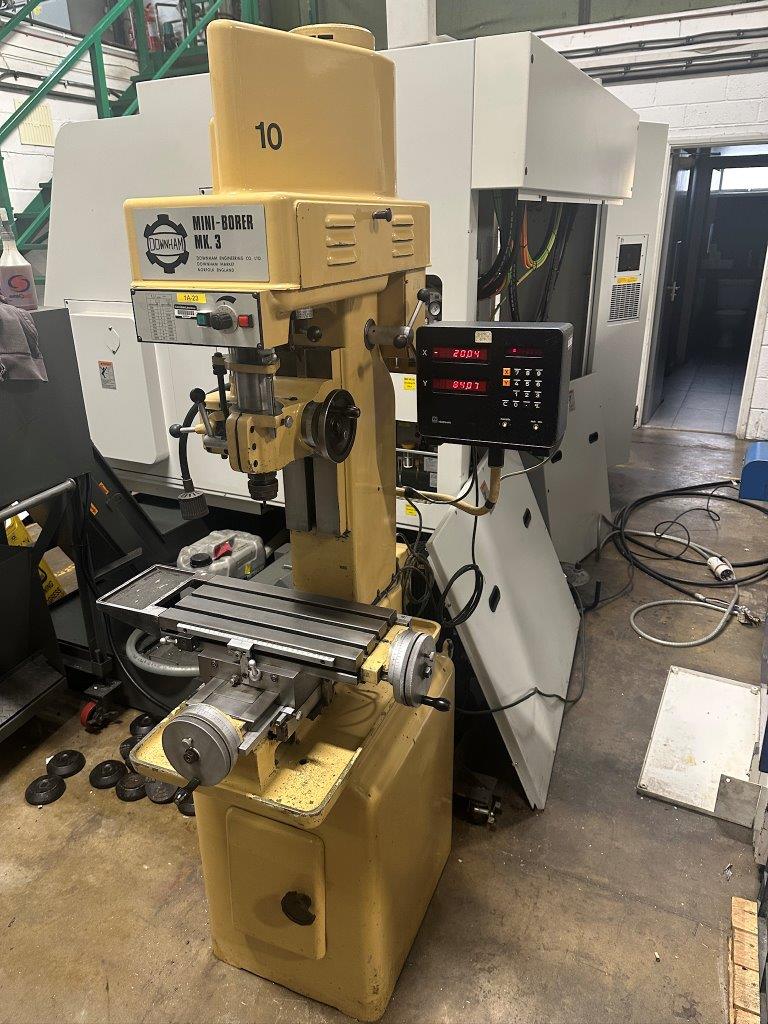

Boring/Used Downham Mill-Borer Mk3 (4204)

REQUEST PRICE

MACHINE INFORMATION AND SPECIFICATION

Category:
Metal Cutting

Subcategory:
Boring

Manufacturer:
Downham

Model:

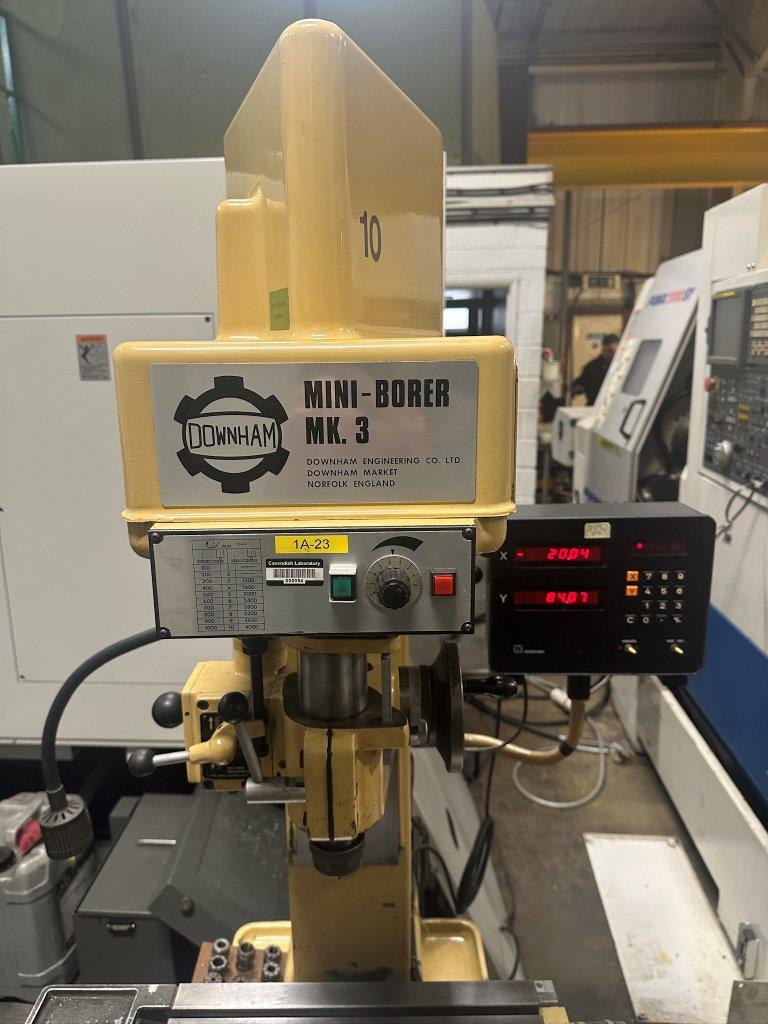

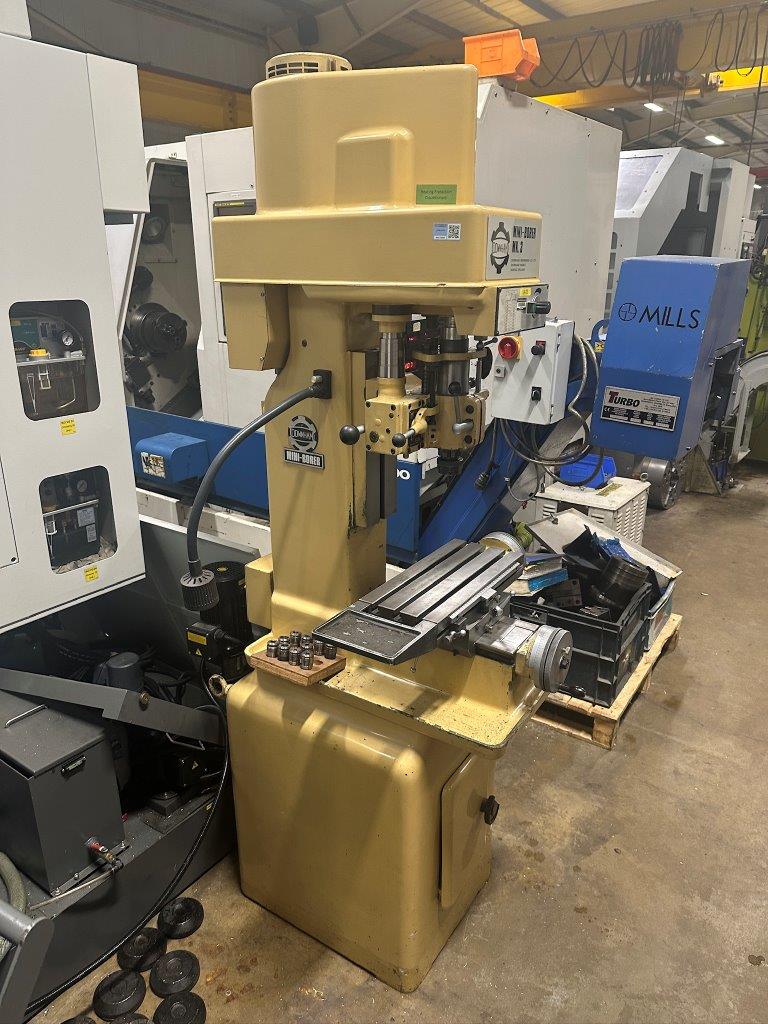

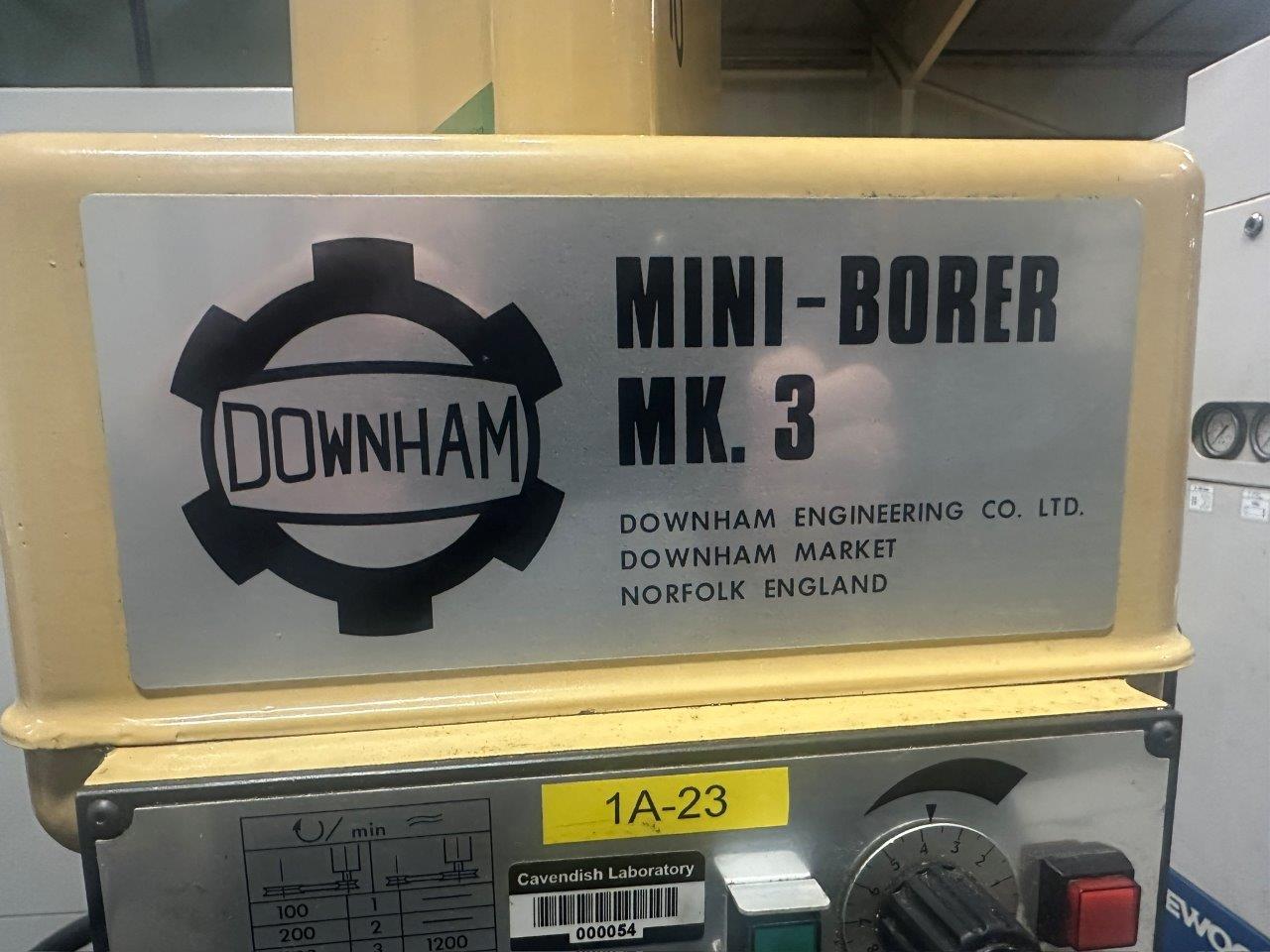

Used Downham Mill-Borer Mk3 (4204)

Condition:
Used

YOM:
NA

Control:
NA

Price:
POA

Seller:
Steven Mooney Machinery

Country:
United Kingdom

DESCRIPTION

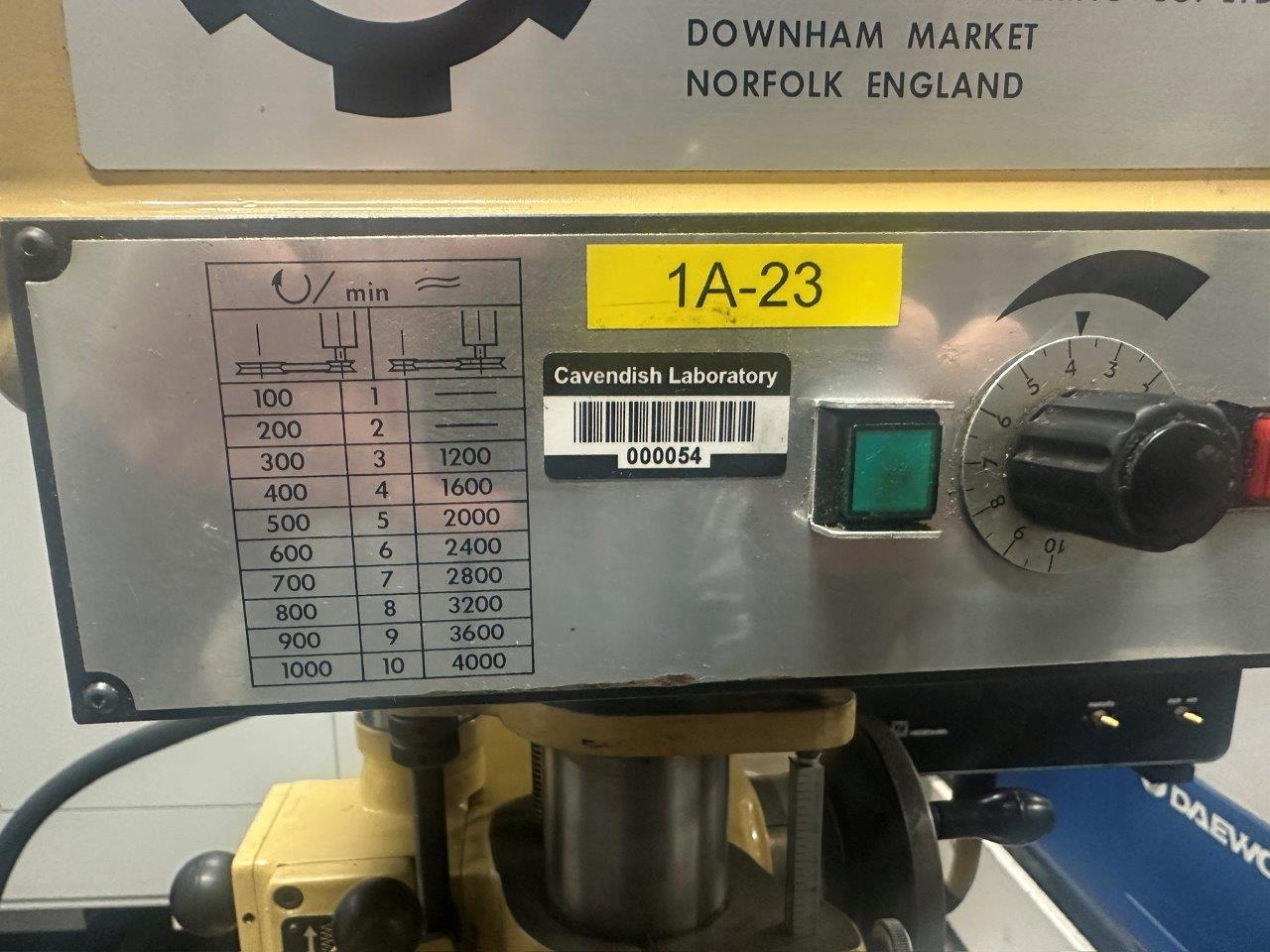

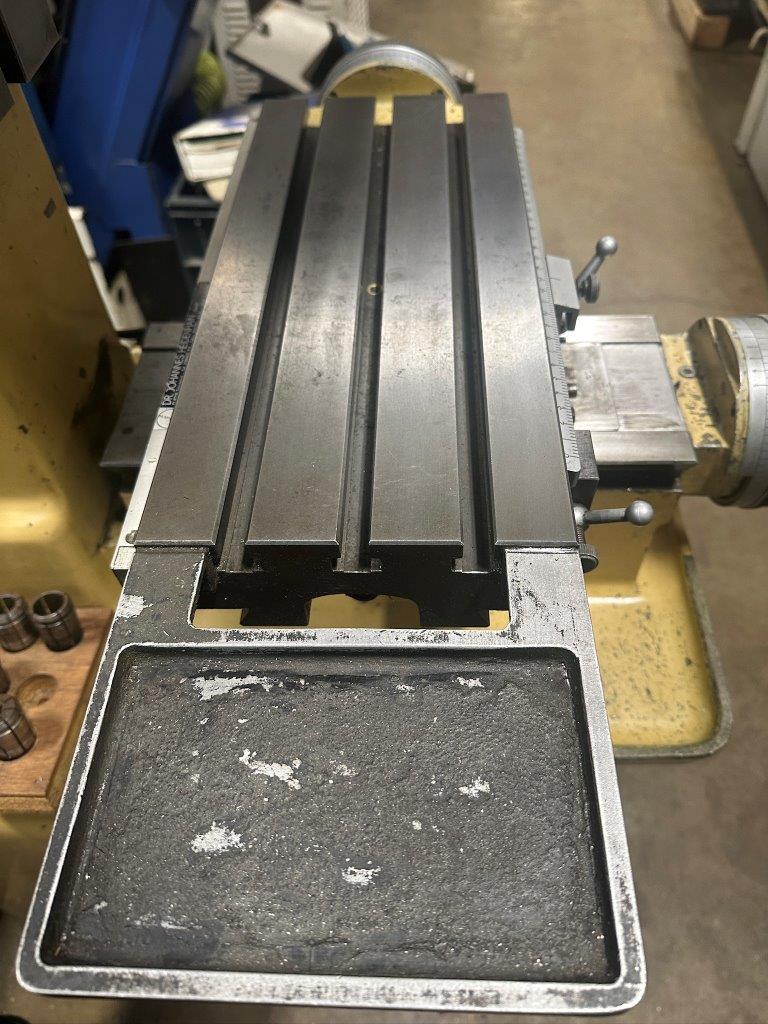

Used Downham Mill-Borer Mk3, Table 406 x 178mm, Long travel 305mm, Cross travel 190mm, Spindle travel 76mm, Distance between spindle nose and table 12 to 254mm, .75kw spindle Motor, 1MT Spindle Taper, Spindle speed variable 100-1,000RPM and 1,200 to 4,000RPM, Power supply - Single phase, (1ph), Dimensions 700 x 865 x 1,905mm high, weight 450kgs

+ request more information

SEND ENQUIRY

*I AM A

Dealer

End User

Check here if you no longer wish to subscribe to our newsletter.

REQUEST MORE INFORMATION

SEND ENQUIRY

*I AM A

Dealer

End User

Check here if you no longer wish to subscribe to our newsletter.

Sellers

Steven Mooney Machinery

Contact Name
Rachel SM

Contact Number
+44 (0) 1444 245 414
