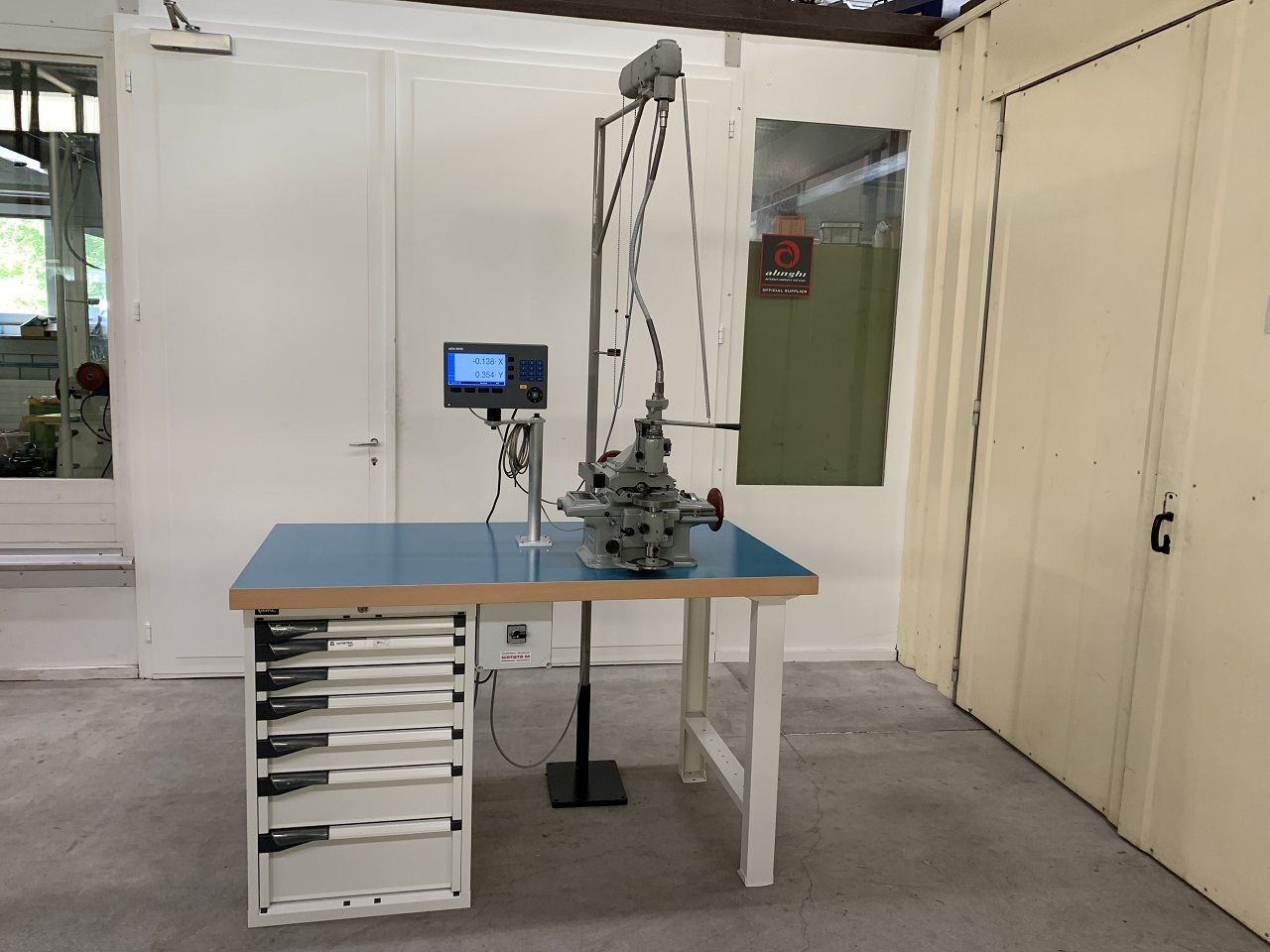

Swiss
Voltage : 380/50/3
Netweight without stand : 70 kg
Custom position : 8459.2930
Dimensions without stand : 600x650x470 mm
Dimensions with stand : 600x650x1330 mm.
4' x 20' "Matrix" grid phenolic surface table for Nested Base Manufacturing
Working capacity: X Axis is 243" (6,170 mm), Y axis 54.3" (1,380 mm), and Z
axis stroke is 9.8" (250 mm); max. material thickness of 6.1" (155 mm).
Positioning Speed: X & ...
Swing over bed dia 650mm. Standard turning dia 234mm. Maximum turning dia 260mm. Swing over carriage dia 365mm. Distance between centres 520mm. Bar capacity 66mm. Travels X/Z 50 + 130/400 mm. Rapid feed – X/Z axis m/min 30/30. Feed motor X/Z axis k...
