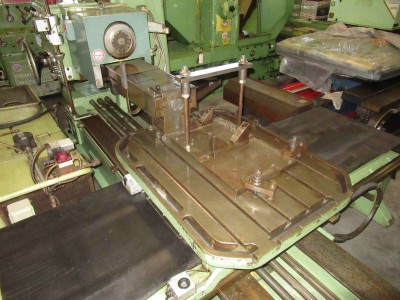

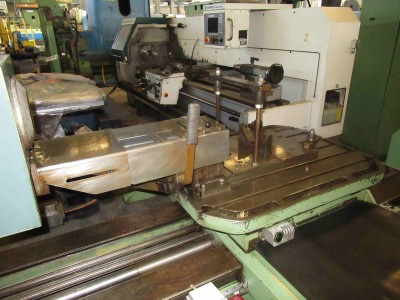

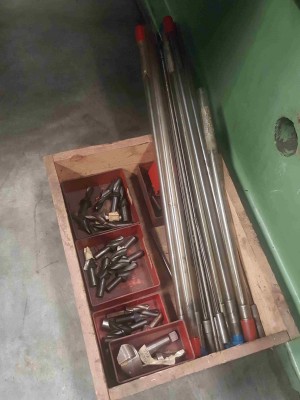

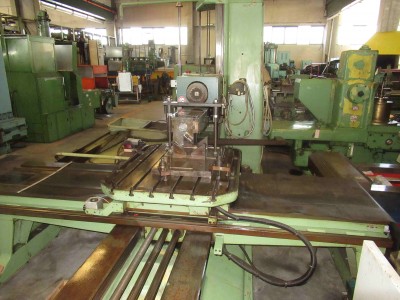

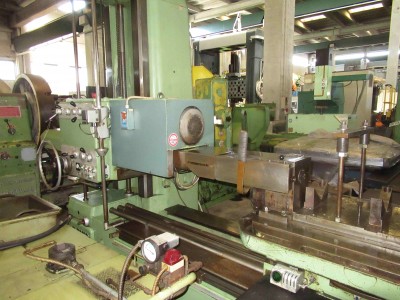

Max. working ?: 76mm. Max. working lenght: 600mm. Spindle power: 6,6Kw. Spindle speeds: N. 16; 8,5 - 1.500Rpm. Spindle taper: 5C.M. Spindle hole ?: 76mm. Max. ? over the bed: 10mm. Table: 1.120 x 870mm. Table travel: 2.030mm. Head vertical travel: 1.000mm. Notes: COMPLETE WITH:- DEEP HOLE DRILLING HEAD MAX. ? 10 MM. x 600 MM. LENGHT- WATER TANK WITH FILTER- DEEP HOLE DRILLING TOOLS
• General renovation 1998
• man. year 1974
• The diameter of the working spindle 90mm
• ISO spindle taper
• Travel in X axis: 1250 mm
• Travel in Y axis: 900 mm
• Travel in the Z axis: 1000 mm
• Spindle stroke (W): 680 mm
• ...
