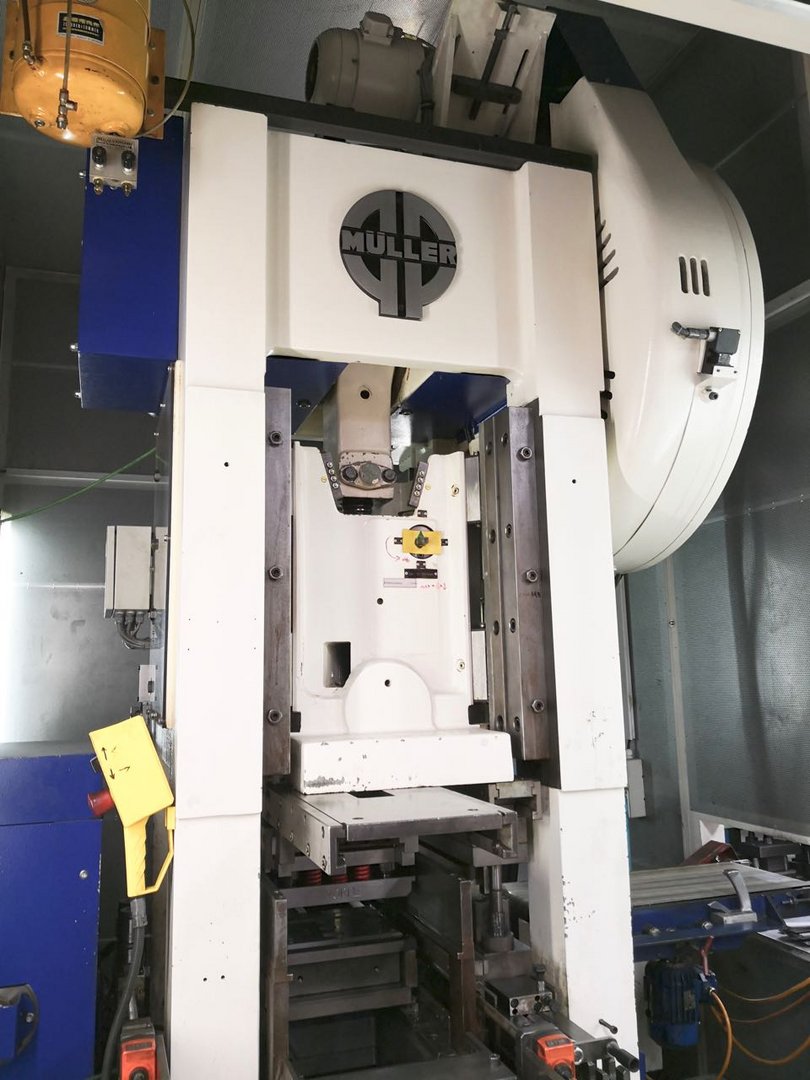

Mechanical Presses/Müller Gefrees PZK 50x550 S/HK

REQUEST PRICE VIEW MAP

MACHINE INFORMATION AND SPECIFICATION

Category:
Presses

Subcategory:
Mechanical Presses

Manufacturer:
Müller Gefrees

Model:
Müller Gefrees PZK 50x550 S/HK

Condition:
Used

YOM:
2002

Control:
Siemens S700-300 PLC

Price:
POA

Seller:
Pressen Haas

Country:
Germany

DESCRIPTION

Press capacity: 50 ton
Ram stroke: 80 mm
Slide adjustment: 40 mm
Shut height (stroke down, adjustment up): 605 mm
Free frontal opening L-R: 560 mm T
able surface area : 500 x 650 mm
Slide area: 540 x 1.000 mm
Hole in table: 220 x 350 mm
Number of strokes: 80 - 160 s.p.m.
Required power: 4 kW
Height over floor approx.: 3.400 mm
Width: 1.600 mm
Table surface area: 1.400 mm
Weight of machine approx.: 7.5 ton
Roll feeder sheet width: 300 mm
Max. stainless steel: 6 mm
Max. steel: 1.200 sq mm
Roll feeder: 0,1 - 6.000 mm
Feeding rolls diameter: +/- 0,05 mm
Feeding length per stroke max.: 90 m / min
Electrics: 96 mm
Bandeinlaufhöhe: 235 - 335 mm
Leveller / Straightener sheet width: 10 - 300 mm
Max. stainless steel: 7
Max. steel: 1.290 mm
Levelling speed: 30 m / min
Retraction force: 80 mm

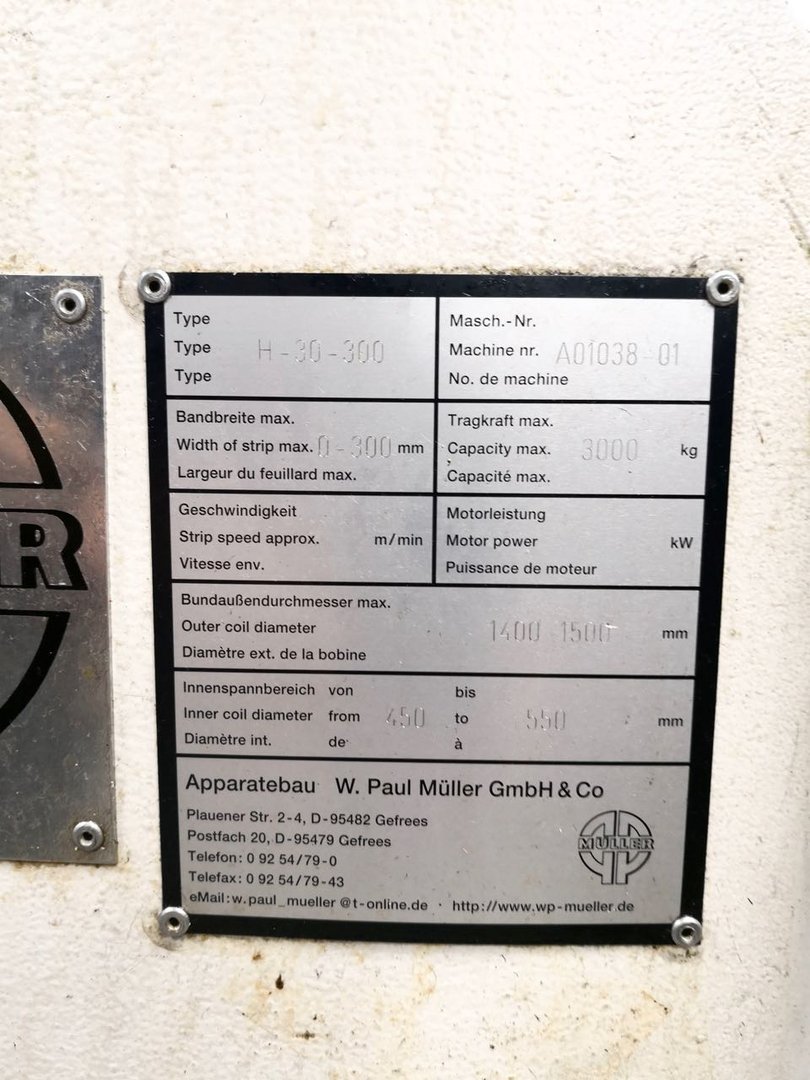

Decoiler Coil weight: 3.0 ton
Material width: 0 - 300 mm
Coil exterior diameter: 1.400 - 1.500 mm
Coil interior diameter: 450 - 550 mm

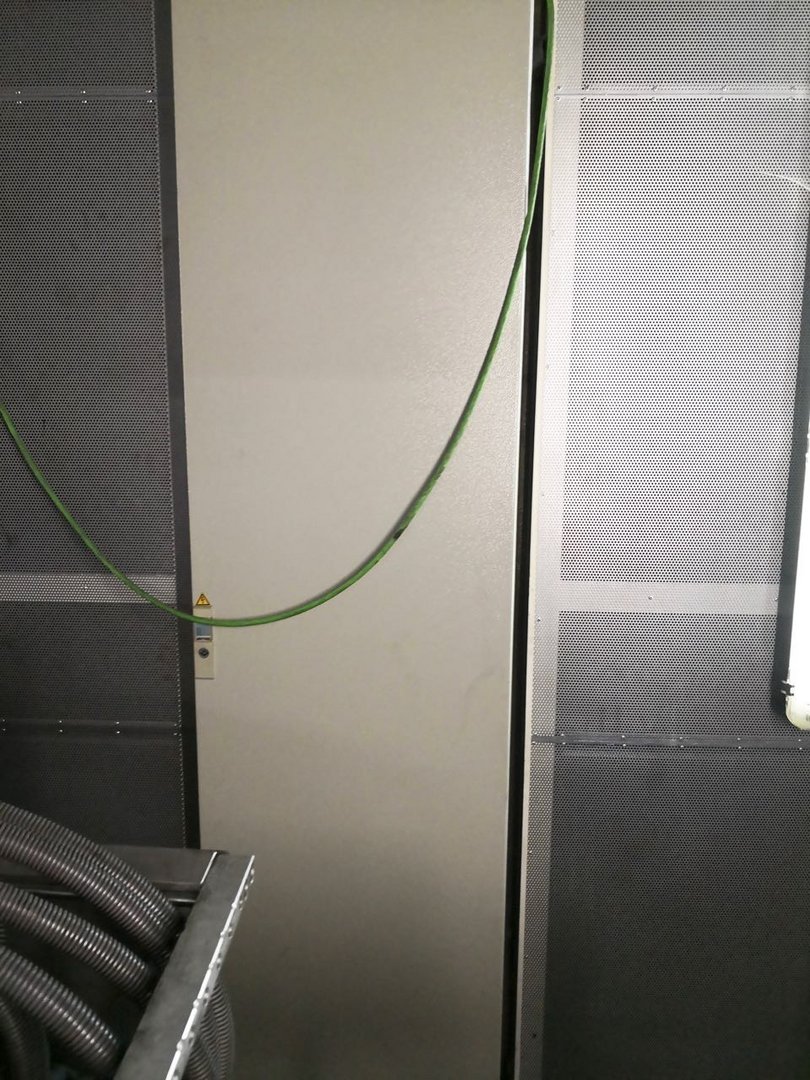

Incl. Noise Reduction Cabine

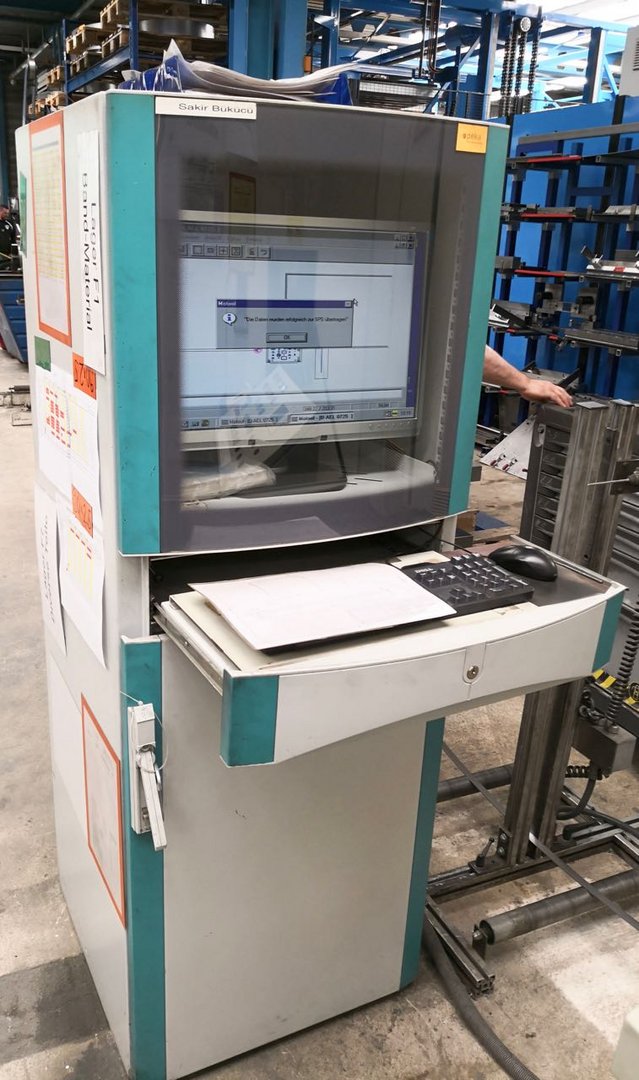

CAD-Connection with extra Station (Computer)

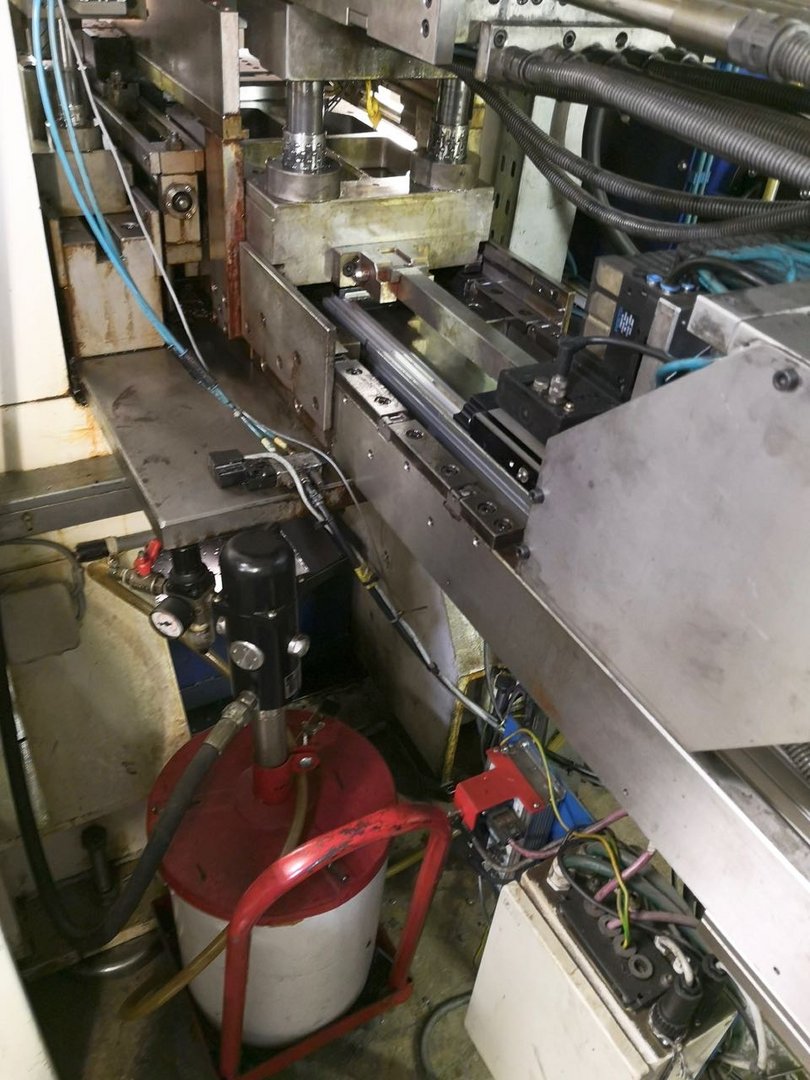

Motol Die System
Rollfeeder
Sheet width 300 mm max.
sheet thickness 6 mm
Cross section 1.200 mm2
Feeding length 0,1 - 6.000 mm
Feeding accuracy +/- 0,05 mm
Feeding speed max. 90 m/min.
Motor Power 6 KW
Belt income heig 235 - 335 mm

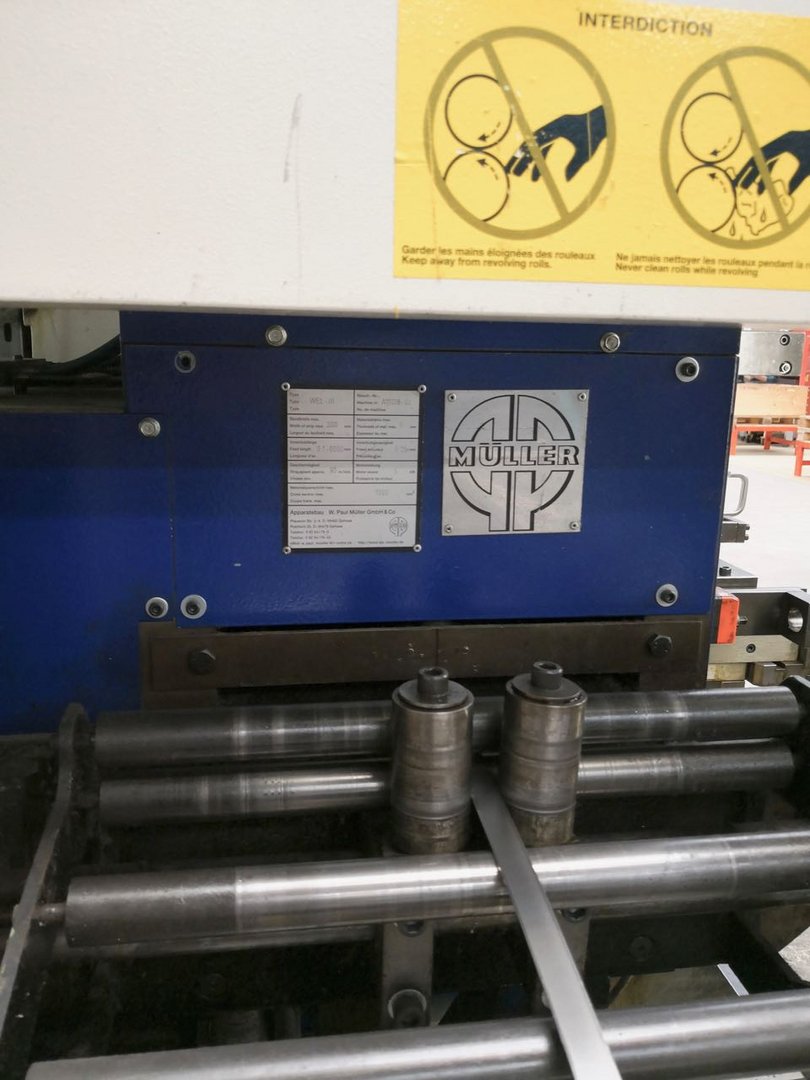

Leveller Sheet width 10 - 300 mm max.
sheet thickness 7 mm
Cross section 1.290 mm2
Belt speed 30 m/min.
Straightening roll diameter 80 mm

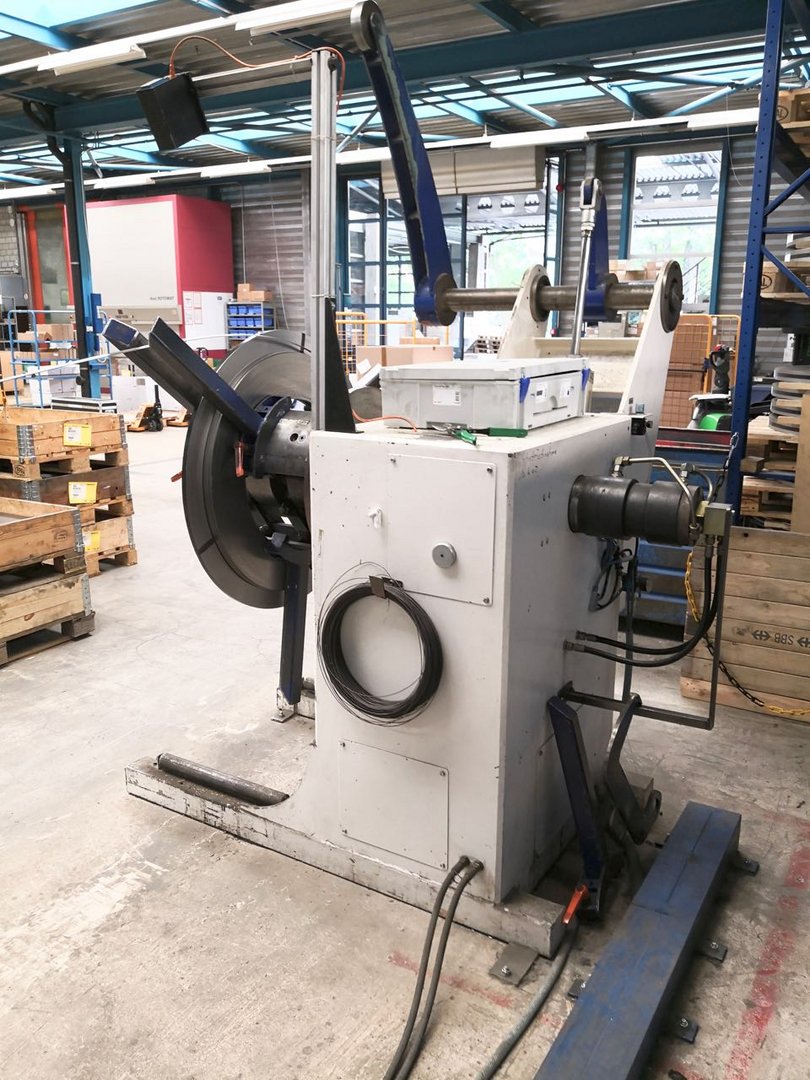

Decoiler max. Coilweight 3 t
Sheet width 0 - 300 mm
Coil outer diameter 1.400 - 1.500 mm
Coil inner diameter 450 - 550 mm
Description: Excellent condition, only 8.600 working hours and incl. spare parts Regularly maintenance
