Manufacturer
Ajax
Type
Radial Arm Drill
Model
AJ155
Capacity
3’ (914mm) Maximum Radius of Spindle
14” (355mm) Minimum Radius of Spindle
4 MT Spindle
7 ½” (190.5mm) Travel of Spindle
4’ (1250mm) Maximum Spindle to baseplate
11” (279mm) Maximum Spindle to baseplate
2’ 6” (762mm) Vertical Traverse to Arm
35” x 26” ( 889 x 660mm) Working Area of baseplate
Equipment

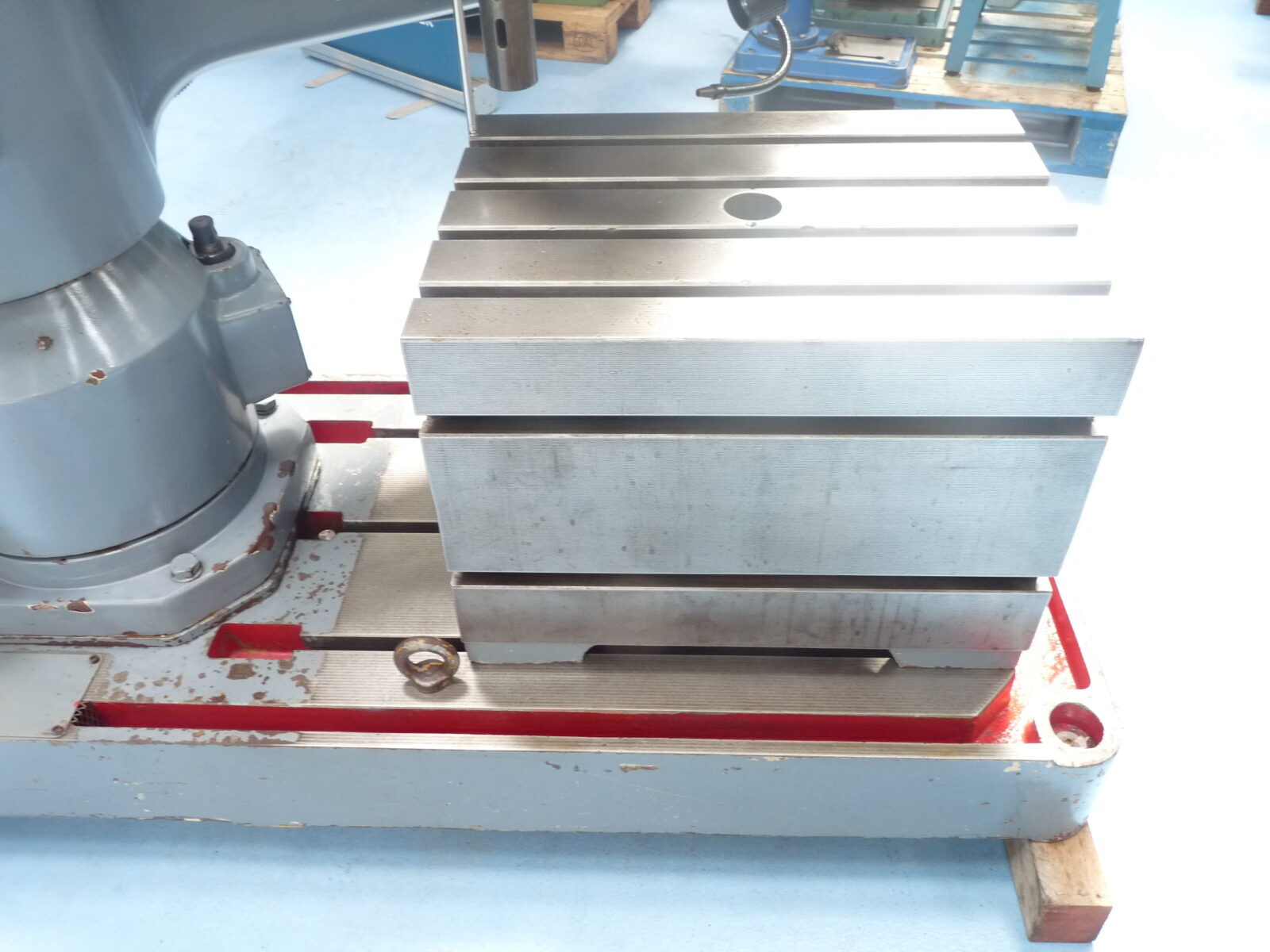

Box Table 605 x 455 x 450mm high
Coolant
Low volt light
Safety
Brake
Telescopic Trip Switch
Features
Forward / Reverse/ Stop / Inch
Power Feed
Power Rise & Fall to Arm
Speeds
18:50 –1500 rpm
Feeds
4: .1 / .4 mm/rev
Main Motor
2.2kw 5 amps
Power
Three Phase Electrics
Safe lifting and handling
We supply lifting and moving instructions. We also loan our specialist lifting equipment where required.
Delivery Options
To suit your needs, call us for a quote.
Drilling Capacity2"Tapping Capacity1-3/8"Column Diameter9"Arm Length40"Head Traverse on Arm28"Arm Traverse on Column26-1/2"Bearing Length Arm on Column19-1/2"Distance Spindle Nose to Base50-1/2" / 16"Spindle Travel in Head10"Taper in SpindleNo. 4MTSp...
