MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • LUCAS
  • Model:

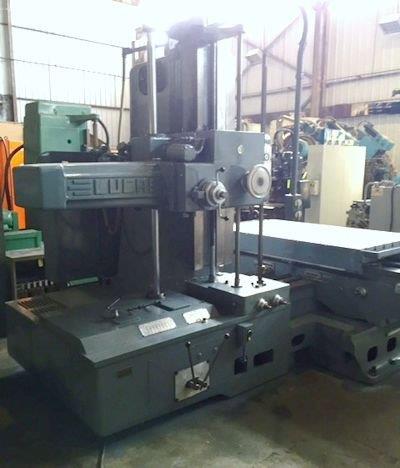

  • 4" LUCAS #441B72, 48" x 72" TBL., 48" VERT. DRO, PENDANT, TOOLING, 65
  • Condition:
  • NA
  • YOM:
  • N/A
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • United States of America United States of America

DESCRIPTION

<p> <br/> EQUIPPED WITH: <br/> <br/> 4-Way Bed<br/> Pendant Controls <br/> Spindle Tooling<br/> Cycle Motor<br/> New Motor Installed 1997<br/> Bijur Auto Lube<br/> Assortment of Spindle Tooling<br/> <br/> SPECIFICATIONS:<br/> <br/> Spindle Speed: 13 - 1500 RPM<br/> Horizontal Travel: 60"/72"<br/> Vertical Travel: 48"<br/> Table Travel (In &amp; Out): 52"<br/> Spindle Travel (In &amp; Out): 36"<br/> Table: 48" x 72"<br/> Feeds: .0001 - .0225 IPM<br/> Taper: #6 Morris<br/> Floor Dimensions: 115"T x 110"W x 156"L<br/> <br/> <br/> F.O.B. TRUCK, WARREN MI<br/> <br/> </p>.
